Remove/Install Rear Seat Backrest Cover - AR91.18-P-1870SA
Model 223
with code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code 224 (Individual rear seats)

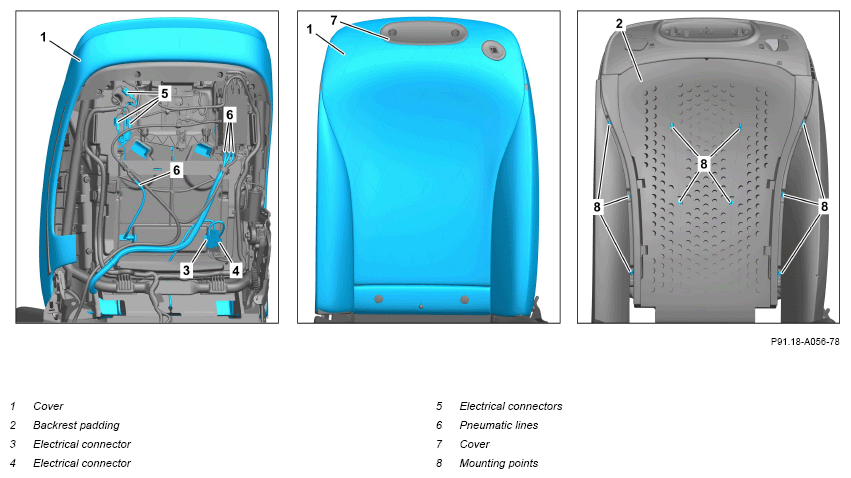

Shown with code 402 (Rear seat climate control), code 406 (Multicontour seats in rear), code 903 (Rear comfort seat heating) and code 811 (High-end sound system)
| Remove | |||
| 1 | Remove outer head restraints in rear passenger compartment. | AR91.16-P-1770SA | |
| 2 | Detach electrical connector (3) and disconnect. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 402 (Rear seat climate control) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 903 (Rear comfort seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 402 (Rear seat climate control) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 903 (Rear comfort seat heating) except code 224 (Individual rear seats) |
|
| 3 | Detach electrical connector (4) and disconnect. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 406 (Multicontour rear seat) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 406 (Multicontour rear seat) except code 224 (Individual rear seats) |
|
| 4 | Detach electrical connectors (5) and disconnect. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 811 (High-End sound system) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 811 (High-End sound system) except code 224 (Individual rear seats) |
|
| 5 | Disconnect pneumatic lines (6). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 406 (Multicontour rear seat) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 406 (Multicontour rear seat) except code 224 (Individual rear seats) |
|
| 6 | Remove cover (7) of head restraint guides. | Fig 1 | |
| 7 | Remove seat belt feeder arm and trim ring of seat belt guide. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code U07 (Seat belt extender in rear passenger compartment) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code U07 (Seat belt extender in rear passenger compartment) except code 224 (Individual rear seats) |
AR91.45-P-0500SA |
| 8 | Unhook cover (1) on the back of seat backrest padding (2) all the way round. | Fig 3 | |
| 9 | Pull cover (1) over seat backrest padding (2). | ||
| 10 | Unfasten staple wires of cover (1) at attachment points (8). | AR91.18-P-1871-01FRX | |
| Fig 4 | |||
| Fig 2 | |||
| 11 | Remove cover (1) from seat backrest padding (2). | ||
| Install | |||
| 12 | Align cover (1) over seat backrest padding (2) so that the seams are seated in the cutouts of seat backrest padding (2). | ||
| 13 | Fasten staple wires of cover (1) at attachment points (8). | AR91.18-P-1871-01FRX | |
| Fig 4 | |||
| Fig 2 | |||
| 14 | Pull cover (1) over seat backrest padding (2). | ||
| 15 | Hook cover (1) onto back of seat backrest padding (2) all the way round. | Fig 3 | |
| 16 | Install trim ring and seat belt feeder arm of seat belt guide. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code U07 (Seat belt extender in rear passenger compartment) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code U07 (Seat belt extender in rear passenger compartment) except code 224 (Individual rear seats) |
AR91.45-P-0500SA |
| 17 | Install cover (7) of head restraint guides. | ||
| 18 | Connect pneumatic lines (6). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 406 (Multicontour rear seat) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 406 (Multicontour rear seat) except code 224 (Individual rear seats) |
|
| 19 | Connect electrical connectors (5). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 811 (High-End sound system) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 811 (High-End sound system) except code 224 (Individual rear seats) |
|
| 20 | Connect electrical connector (4). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 406 (Multicontour rear seat) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 406 (Multicontour rear seat) except code 224 (Individual rear seats) |
|
| 21 | Connect electrical connector (3). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 402 (Rear seat climate control) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 903 (Rear comfort seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 402 (Rear seat climate control) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 903 (Rear comfort seat heating) except code 224 (Individual rear seats) |
|
| 22 | Install outer head restraint in rear passenger compartment. | AR91.16-P-1770SA |
