Remove/Install Rear Seat Backrest Cover - AR91.18-P-1870S

Model 223

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove head restraints in rear passenger compartment.		AR91.16-P-1770S
2	Remove armrest.		AR91.12-P-1744S

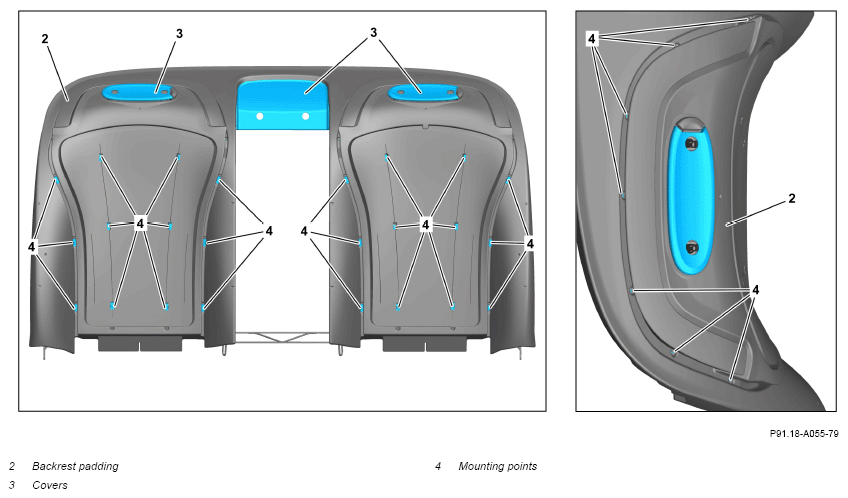

3	Remove covers (3) of head restraint guides	Long wedge	Fig 1

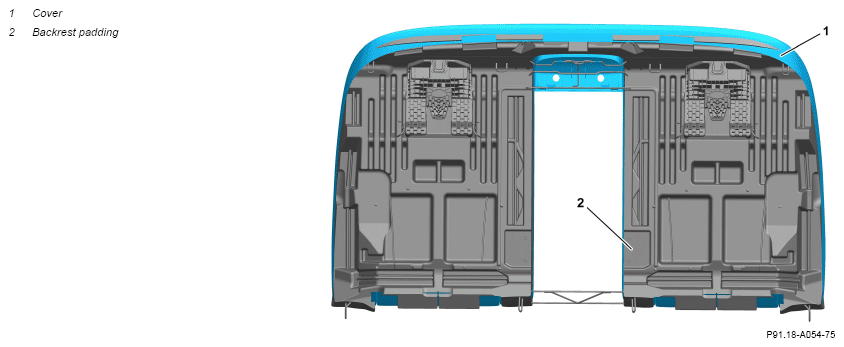

4	Unhook cover (1) on the back of seat backrest padding (2) all the way round.	Extraction hook	Fig 3
5	Pull cover (1) over seat backrest padding (2).
6	Unfasten staple wires of cover (1) at attachment points (4).		AR91.18-P-1871-01FRX
		Padding clip pliers	Fig 4
		Dismantling tool	Fig 2
7	Remove cover (1) from seat backrest padding (2).
	Install
8	Align cover (1) over seat backrest padding (2) so that the seams are seated in the cutouts of seat backrest padding (2).
9	Fasten staple wires of cover (1) at attachment points (4).		AR91.18-P-1871-01FRX
		Padding clip pliers	Fig 4
		Dismantling tool	Fig 2
10	Pull cover (1) over seat backrest padding (2).
11	Hook cover (1) onto rear of seat backrest all-round.	Extraction hook	Fig 3
12	Install covers (3) of head restraint guides.
13	Install armrest.		AR91.12-P-1744S
14	Install head restraints in rear passenger compartment.		AR91.16-P-1770S

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
