Remove/Install Electrical Footrest For Front Passenger Seat - AR91.29-P-0100S

Model 223

with code 452 (Front passenger seat chauffeur position)

Model 223

with code P07 (Chauffeur package)

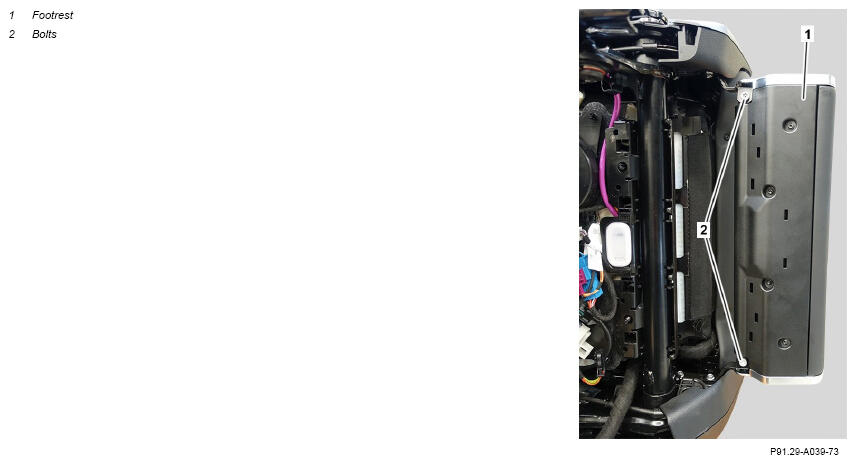

Fig 1: Electrical Footrest For Front Passenger Seat Components Location - Model 223 With Code 452, P07

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Extend footrest (1) completely.
2	Mark position of screws (2).
3	Unscrew screws (2) and remove footrest (1).	Note markings of screws (2).
4	Install in the reverse order.
