Detach/Attach Belt End Fitting - AR91.40-P-1030-02SA

Model 223

with code 562 (Driver seat belt buckle with integrated tensioning function)

Remove

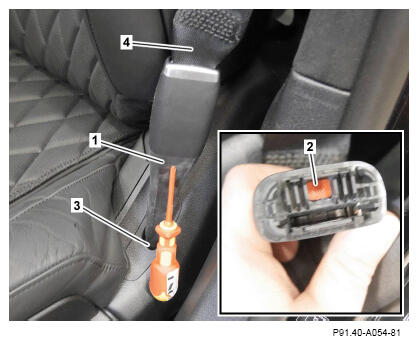

1. Insert a suitable screwdriver into opening on feed-through grommet (1) and operate release tab (2).
2. Remove seat belt (4) from seat belt end fitting (3).

   Install

3. Connect seat belt end fitting (3) and seat belt (4).

   The seat belt (4) engages audibly in the seat belt end fitting (3).
