Remove Contacts From Siemens ELO Coupling - AR00.19-P-0120-23A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with secondary retainer

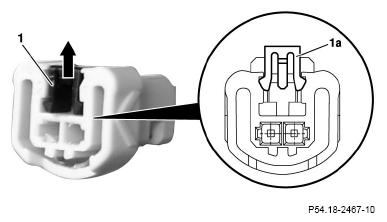

1. Use a suitable tool to reach into the secondary lock (1) and slide in direction of arrow towards pre-locking position (1a).

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with securing clip

2. Using a suitable tool, pry up the side tabs of the retaining clamp (1).
3. Slide securing clip (1) upwards.
4. Remove securing clip (1).

   Courtesy of MERCEDES-BENZ USA

   Unpin female contacts from coupling

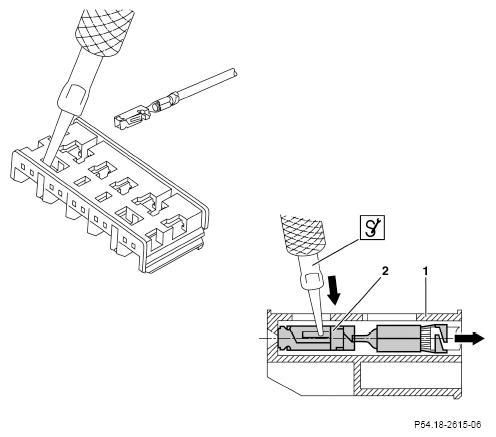

5. Attach blade holder with clamping pliers and MQS blade at side of spring shackle of female contact (2).
6. Press the spring shackle of the female contact (2) downward and push the female contact (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the unpinning procedure.
