Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01G
Model 223
with code Z07 (B7 armoring on special protection version)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | |
| 000 588 00 80 00 Vehicle lift | WS00.00-P-0040B |

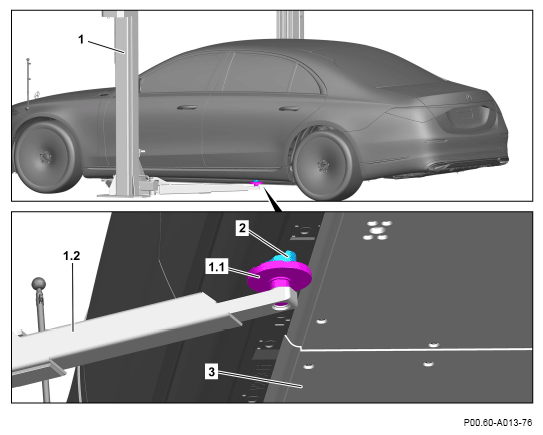

- Turn support plates (1.1) of support arms (1.2) of vehicle lift (1) until they make contact with vehicle lift support points (2).
Unscrew support plates (1.1) up to contact surface on vehicle lift support points (2) and align centrally.
Otherwise, the floor armoring (3) may be damaged by the support arms (1.2) of the vehicle lift (1) if they are positioned excessively inward.
- Lift vehicle with vehicle lift (1).
