Remove/Install Right Rear Engine Suspension Lug - AR01.20-P-5012-02SC

Engine 176 in model 223

Topical note

Information on preventing damage to electronic components due to electrostatic discharge

CYLINDER HEAD

Number	Designation			Engine 176
BA01.30-P-1003-01N	Bolt, heat shield/rear lifting eye to cylinder head	M6	Nm	9

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

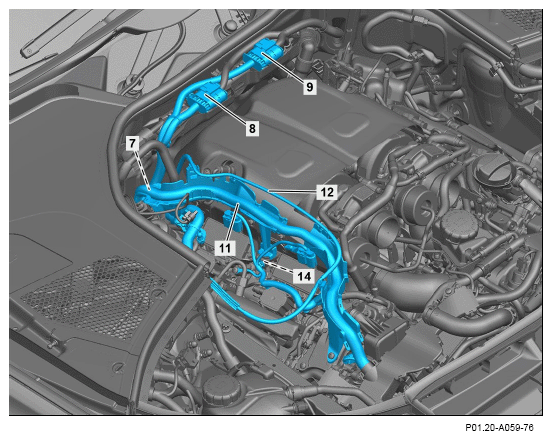

Release and disconnect electrical connectors (8, 9).
Unclip inerting line (12) from engine wiring harness (11) with cable duct and place to one side.
Remove engine wiring harness (11) with cable duct from engine lifting lug (7).
Unclip engine wiring harness (11) from cylinder head cover (14) using disassembly tool and place to one side.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

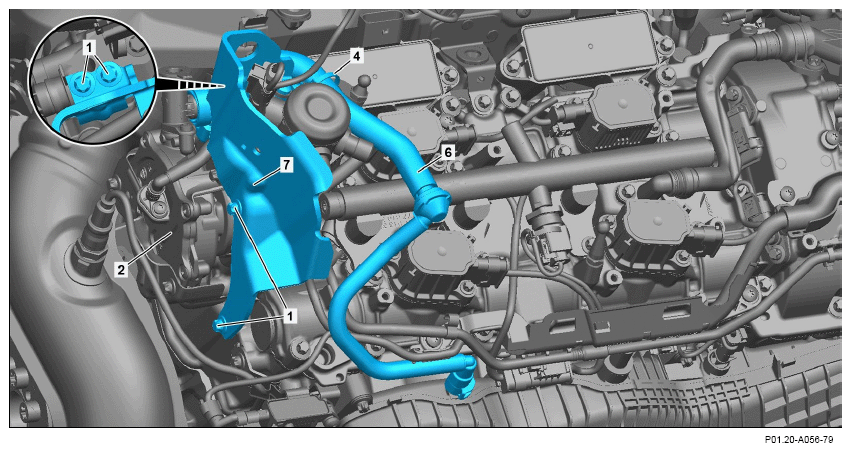

Open heat shield of vacuum hose (6) at vacuum pump (2).
Remove cable tie (4).
: Install new cable tie (4).
Remove vacuum hose (6) from vacuum pump (2) and engine lifting lug (7), place to one side and seal openings with suitable stop plugs.
Remove bolt (1) .
Remove engine lifting lug (7).
Install in the reverse order.
