Remove/Install Heat Shield Of Turbocharger - AR09.40-P-6044SC
Engine 176 in model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |

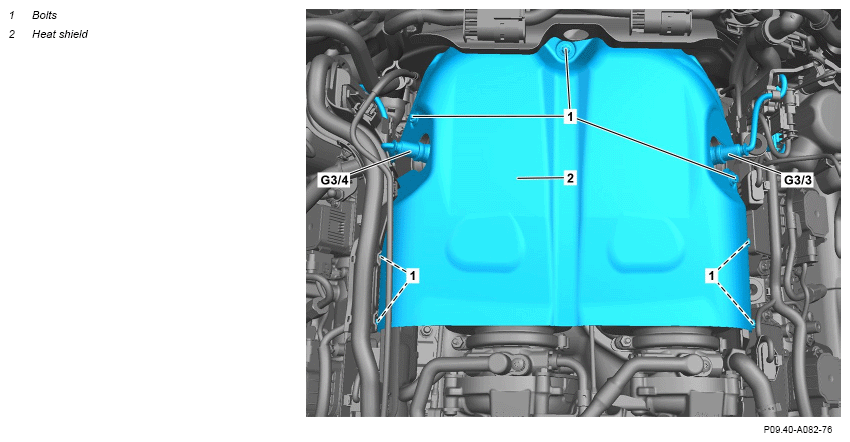

| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152SC | |
| 2 | Remove screws (1). | *BA09.40-P-1008-01ZA | |
| *BA09.40-P-1006-01ZA | |||
| 3 | Remove heat shield (2). | ||
| 4 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
