Detach/Attach Flex Disk Of Propeller Shaft - AR41.10-P-0040-02SVZ
Model 223 with engine 279
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA |
PROPELLER SHAFT
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA41.10-P-1001-01O | Flexible coupling to transmission/front propeller shaft | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | ||
PROPELLER SHAFT
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA41.10-P-1002-01O | Flexible coupling to rear axle differential or rear propeller shaft | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | ||
- Mark position of propeller shaft (1) relative to flange of transmission or of transfer case or of rear axle differential.
- Attach
counterholder to screws of flex disk (2).
- Remove bolts (2a).
Aid of helper required.
- Remove
- Install in the reverse order.

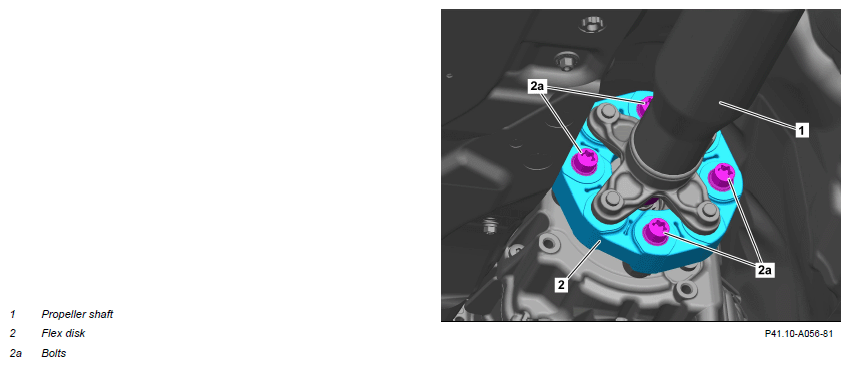

Shown on flex disk (2) attached to transfer case
