Side Damage Seam Sealing Following Repair - Ar97.10-P-4000-03S
| Topical note | Notes on sprayable joint sealant | AH97.10-P-0002-01A | |
| Notes on seam seal | AH97.10-P-0003-01A |
Model 223.0/1/9
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

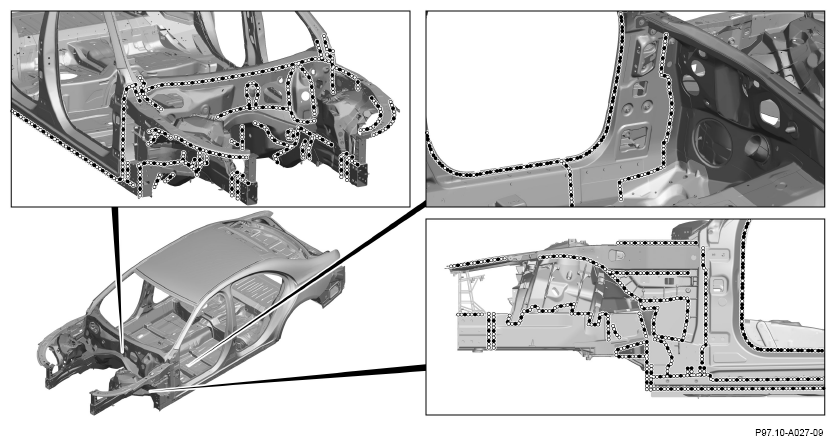

Area of front end and A-pillar

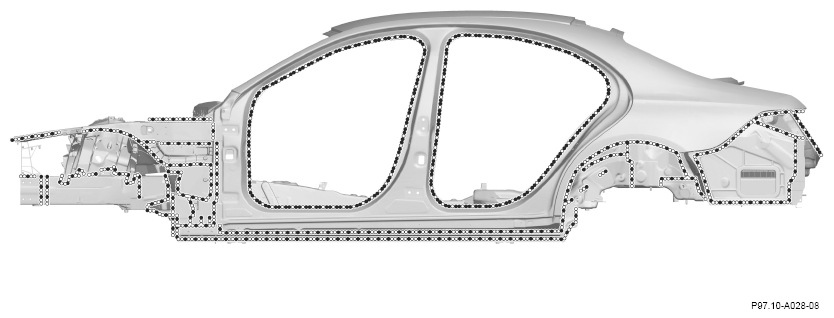

Complete side wall area

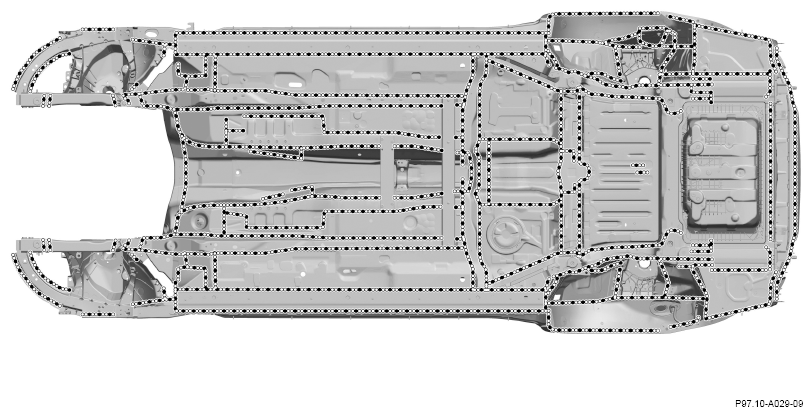

Area of underfloor and wheel well
- Seal connecting flanges and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Ensure that the threads on the weld nuts and threaded bolts as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material.
Accessible connecting flanges must be sealed on both sides.
- Insert stop plugs and grommets with seam sealant material.
