Rear End Damage Seam Sealing Following Repair - Ar97.10-P-4000-02S
| Topical note | Notes on sprayable joint sealant | AH97.10-P-0002-01A | |
| Notes on seam seal | AH97.10-P-0003-01A |
Model 223.0/1/9
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

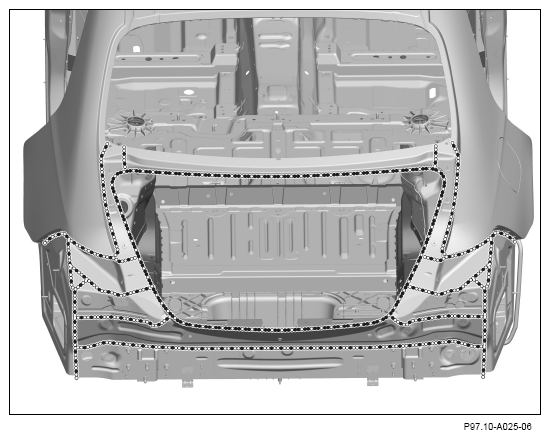

Rear area
- Seal connecting flanges and riveted joints in the repaired area with seam sealing material.
Observe standard sealing. Seal only primed body parts. Ensure that the threads on the weld nuts and threaded pins as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material. It is necessary to seal accessible connecting flanges on both sides.
- Insert stop plugs and grommets with seam sealant material.

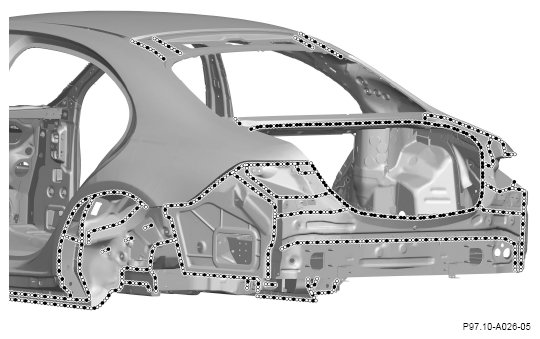

Area of rear fender and rear left wheel arch
