Side Wall Reinforcement Partial Installation - Ar63.20-P-0861-04S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk head rivet (Z)

• Z₁ = Countersunk-head rivet 6.4x14.0
• Z₂ = Countersunk-head rivet 6.4x15.5
• Z₃ = Countersunk-head rivet 6.4x17.0
• Z₄ = Countersunk-head rivet 6.4x19.0
• Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = Blind rivet 6.4x12.0
• Y₂ = Blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4M6
• Y₅ = blind rivet 6.4
• Y₆ =blind rivet 6.5X13.5
• Y₇ =Blind rivet 6.4x14.0
• Y₈ = Blind rivet 6.4x17.0
• Y₉ = Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X7 = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with a 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with a 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the perspective of the technician. This perspective also specifies the direction in which the rivets must be installed.

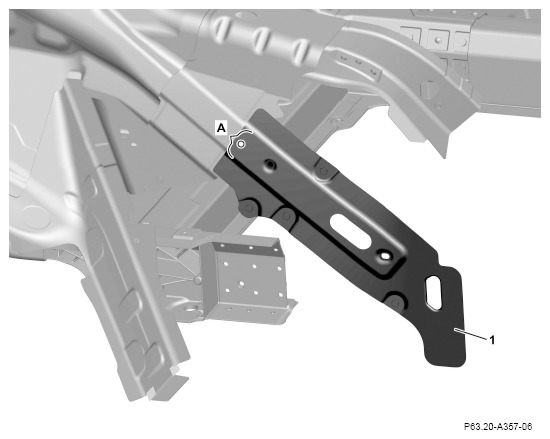

1. Install side wall reinforcement (1), fit, and fix in place.
2. Drill rivet hole in side wall reinforcement (1) with Ø 6.7 mm bit (area A).
3. Remove side wall reinforcement (1).
4. Deburr rivet hole in side wall reinforcement (1) and body on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

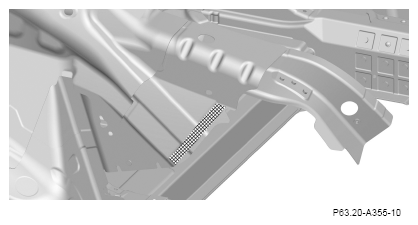

6. Apply 2-component adhesive to body in cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

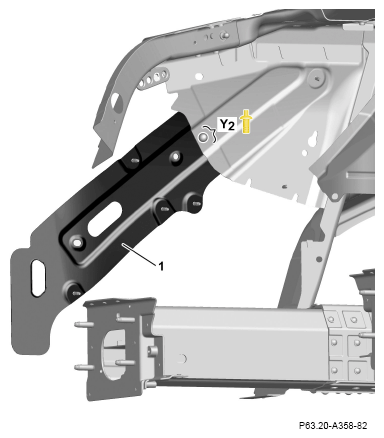

7. Install side wall reinforcement (1) and fix in place.
8. Rivet side wall reinforcement (1) with Ø 6.5x12.5 rivet (area Y₂ ).

   Courtesy of MERCEDES-BENZ USA
