Inner Side Wall With Rear Outer Wheelhouse Partial Removal - Ar63.10-P-6050-01SZ

Model 223.9

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

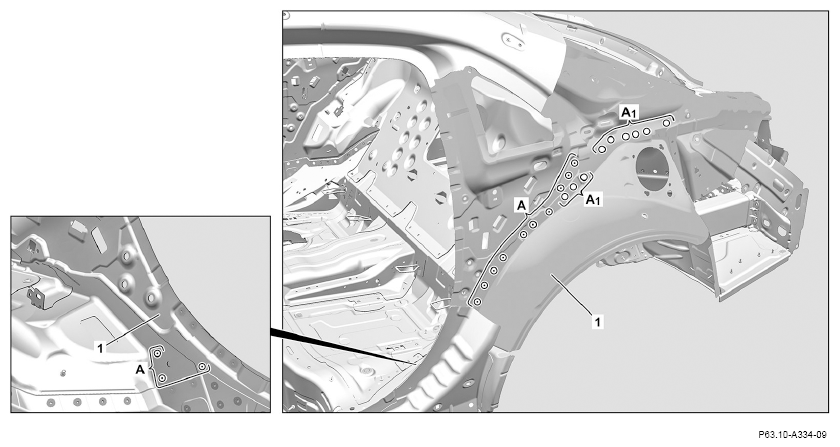

1. Expose spot welds on inner side wall (1) (area A).
2. Cut off spot welds on inner side wall (1) (area A).
3. Drill off self-piercing rivets on inner side wall (1) with Ø 6 mm bit (area A₁ ).

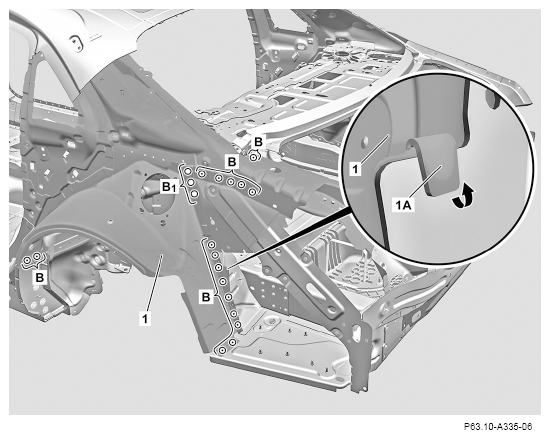

4. Expose spot welds on inner side wall (1) (areas B).
5. Cut off spot welds on inner side wall (1) (areas B).
6. Drill off self-piercing rivets on inner side wall (1) with Ø 6 mm bit (area B₁ ).
7. Bend sheet metal lug (1A) in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

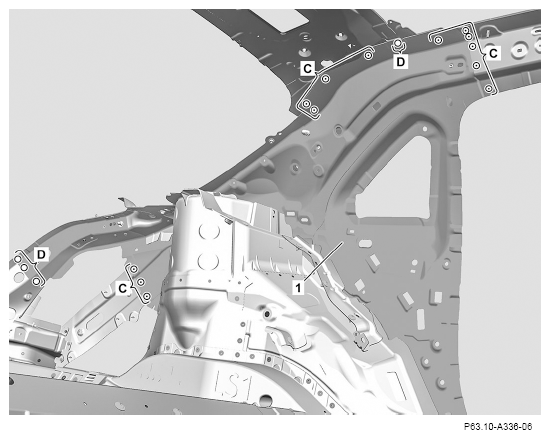

8. Drill through clinch connections on inner side wall (1) with Ø 6 mm bit (area D).
9. Expose spot welds on inner side wall (1) (areas E).
10. Cut off spot welds on inner side wall (1) (areas E).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

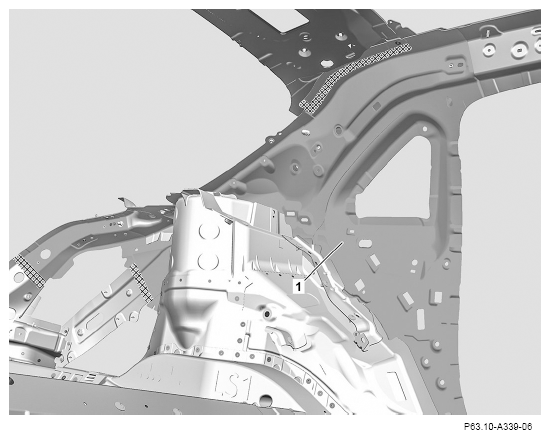

11. Heat inner side wall (1) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

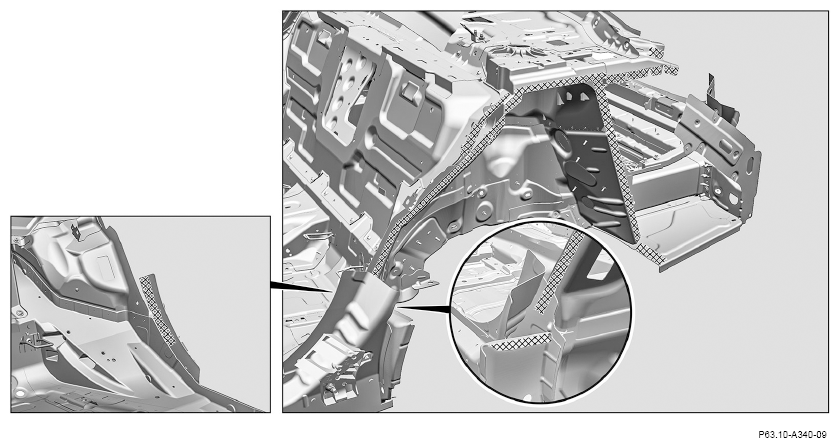

12. Heat inner side wall (1) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

    Courtesy of MERCEDES-BENZ USA

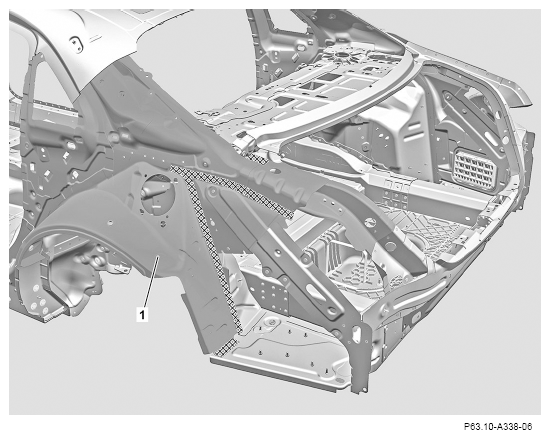

13. Heat inner side wall (1) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

14. Remove inner sidewall (1).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

15. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

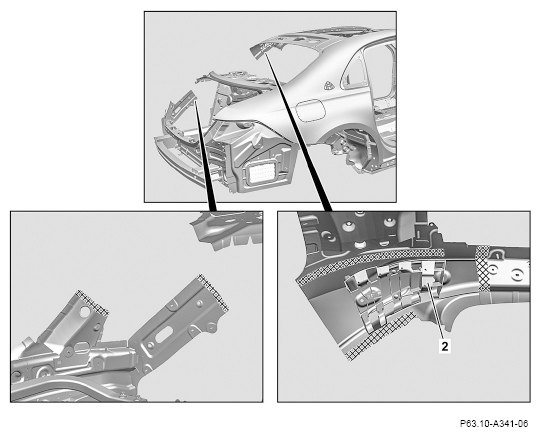

16. Unclip support (2).
17. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

18. Remove grinding dust and drill chips.

    Courtesy of MERCEDES-BENZ USA
