Inner Side Wall Insulation Repair - Ar63.50-P-1401-04S

Model 223.0/1

The following operation steps are shown on model 223.0 on the left side of the vehicle and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

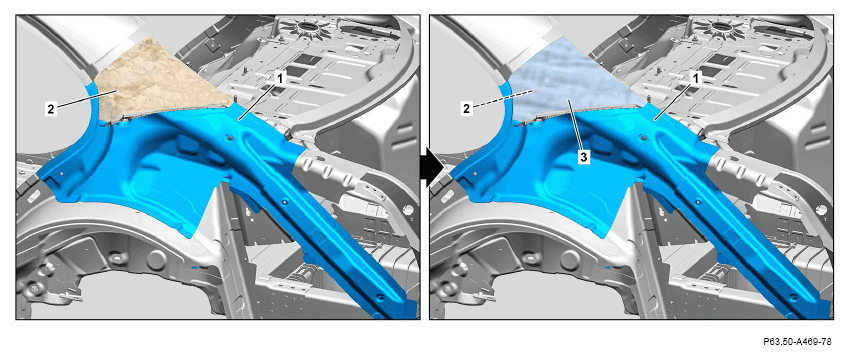

Use component part A 223 989 01 00 as per the parts information system to prepare replacement material (3).

1. Cut out damaged area of insulation (2) on inner side wall (1) and remove.
2. Cut replacement material (3) to size and adapt.

   Cut replacement material (3) to size in line with removed area of insulation (2).

3. Glue on replacement material (3) in area where insulation was removed (2).
