Inner Side Wall And Outer Rear Wheelhouse Preparation For Installation - Ar63.10-P-6050-02S

Model 223.0/1

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

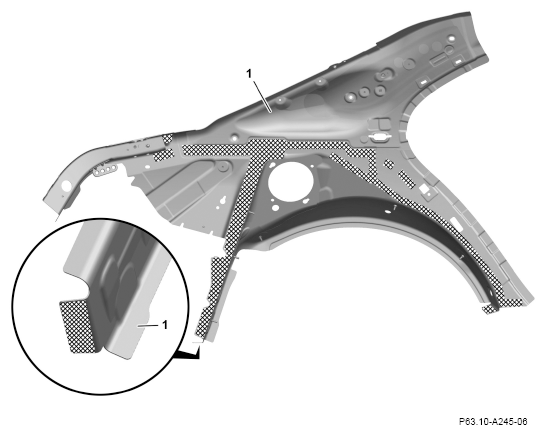

1. Grind mating surfaces on the inner side wall (1) down to bare metal in the cross-hatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

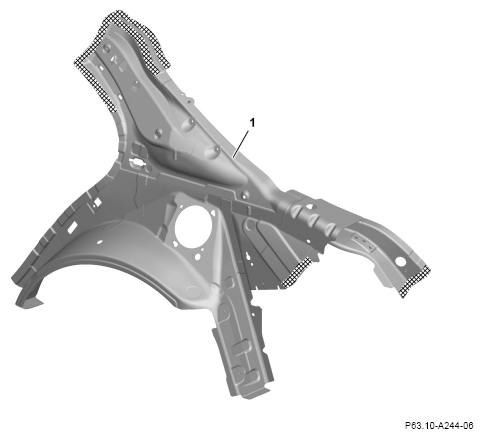

2. Grind mating surfaces on the inner side wall (1) down to bare metal in the cross-hatched areas.

   Observe pretreatment of bonding surfaces.

3. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
