Inner Rear Wheel Well End Plate Remove - Ar63.10-P-6070-05S

Model 223.0/1/9

The following operation steps are shown on model 223.1 partially on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

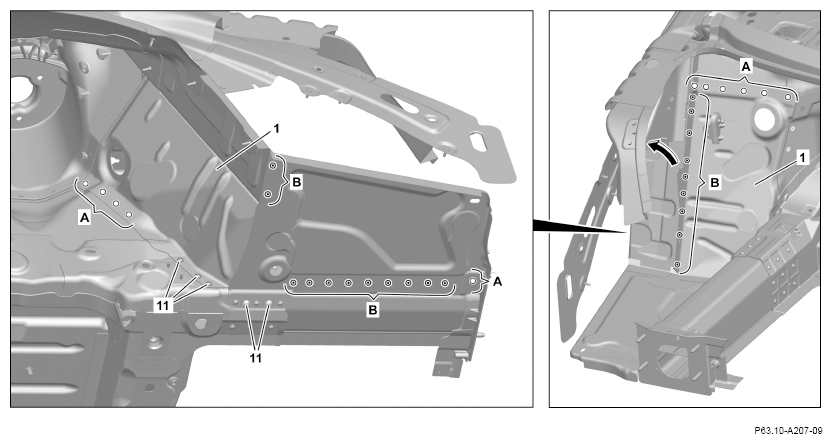

1. Expose self-pierce rivets at wheel well cover plate (1) and drill off with Ø 6 mm (areas A).
2. Expose spot welds at wheel well cover plate (1) and cut off (areas B).
3. Expose screws (11) at wheel well cover plate (1) and remove.
4. Bend open sheet metal lug in direction of arrow.
5. Expose spot weld at bracket (2) and cut off (areas C).

   Right side of vehicle.

   Right side of vehicle

   Courtesy of MERCEDES-BENZ USA

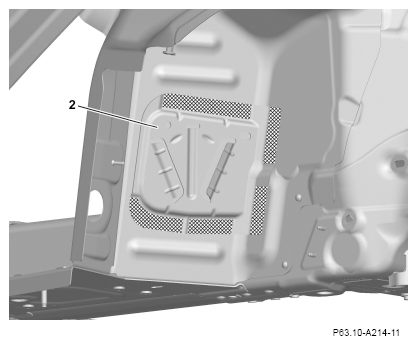

6. Heat bracket (2) in cross-hatched areas.

   Right side of vehicle.

   Cross-hatched areas are bonded with adhesive.

7. Remove holder (2).

   Right side of vehicle.

   Right side of vehicle

   Courtesy of MERCEDES-BENZ USA

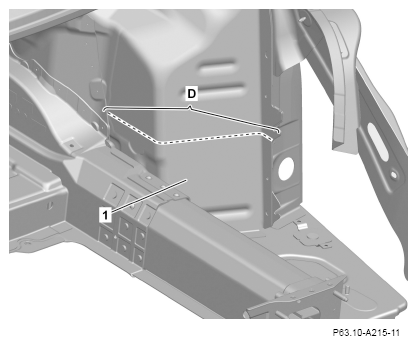

8. Mark separating point on wheel well cover plate (1) and cut (area D).

   Right side of vehicle.

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Right side of vehicle

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

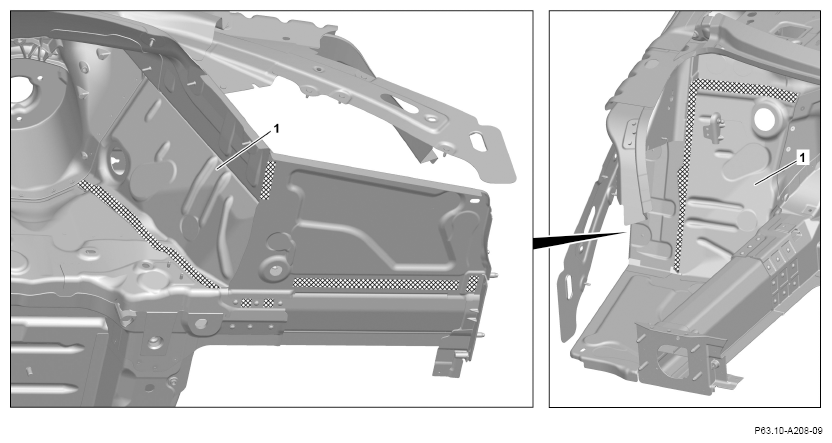

9. Heat wheel well cover plate (1) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

10. Remove wheel well cover plate (1).

    Courtesy of MERCEDES-BENZ USA

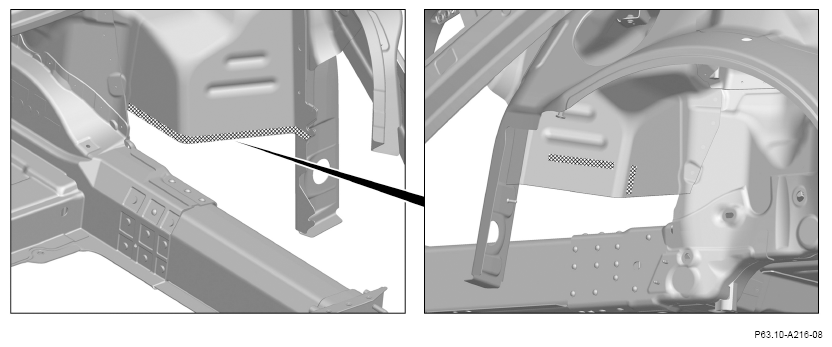

11. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

    Additional mating surfaces on right side of vehicle

12. Grind mating surfaces down to bare metal in cross-hatched areas.

    Right side of vehicle.

    Observe pretreatment of bonding surfaces.
