Floor Above Rear Axle Preparation - Ar63.40-P-1200-02S

Model 223.0/1/9

The following operation steps are shown on model 223.1. The superordinate service document as well as the safety information in the service document must be observed.

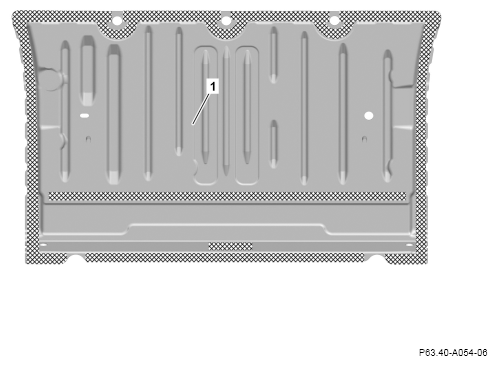

1. Grind mating surfaces at floor over rear axle (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
