CROSSMEMBER Below Rear Seat Removal - Ar63.40-P-1194-01S

Model 223.0/1/9

The following operation steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle.

The superordinate service document as well as the safety information in the service document must be observed.

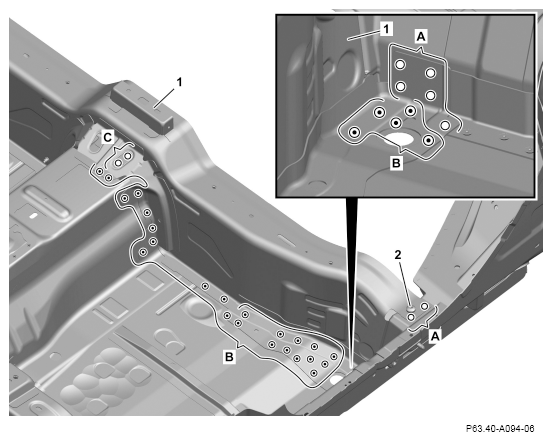

1. Expose self-pierce rivets at crossmember under rear seat (1) and drill off with Ø 6 mm (areas A).
2. Expose spot welds at crossmember under rear seat (1) and cut off (areas B).
3. Expose spot welds at crossmember under rear seat (1) and drill out with Ø 6.5 mm (area C).
4. Expose screw (2) at crossmember under rear seat (1) and remove.

   Courtesy of MERCEDES-BENZ USA

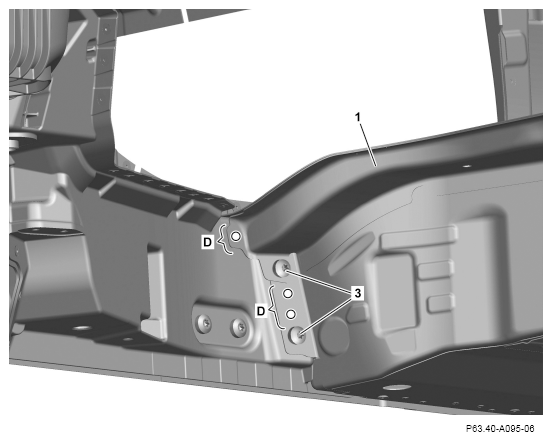

5. Expose self-pierce rivets at crossmember under rear seat (1) and drill off with Ø 6 mm (areas D).
6. Expose screws (3) at crossmember under rear seat (1) and remove.

   Courtesy of MERCEDES-BENZ USA

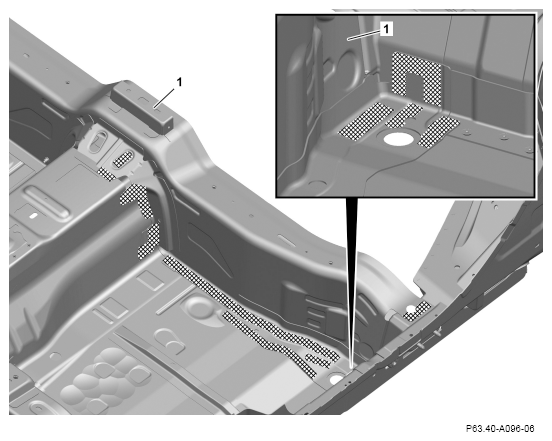

7. Heat up crossmember under the rear seat (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

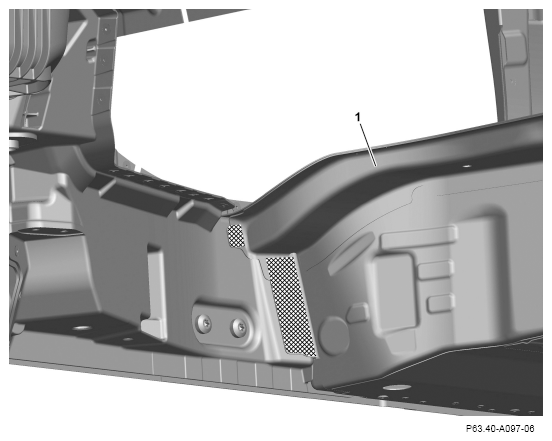

8. Heat up crossmember under the rear seat (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

9. Remove crossmember under the rear seat (1).

   Courtesy of MERCEDES-BENZ USA

10. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

11. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA
