Spare Tire Well Installation - Ar64.20-P-1245-03S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

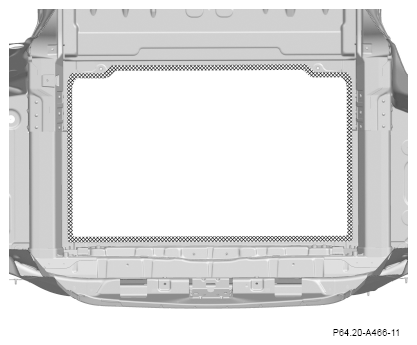

1. Apply adhesive material to body in hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive material.

   Courtesy of MERCEDES-BENZ USA

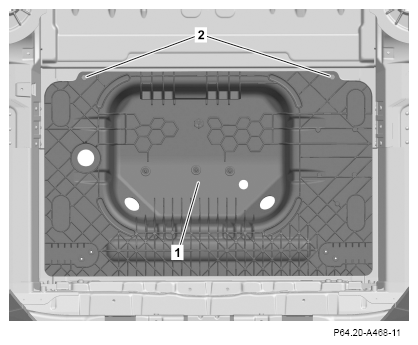

2. Install and align spare wheel well (1).
3. Screw in screws (2).

   Courtesy of MERCEDES-BENZ USA
