Rear Wall Preparation For Installation - Ar64.10-P-5746-02S

Model 223.0/1/9

The following steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle. The superordinate service document as well as the safety information in the service document must be observed.

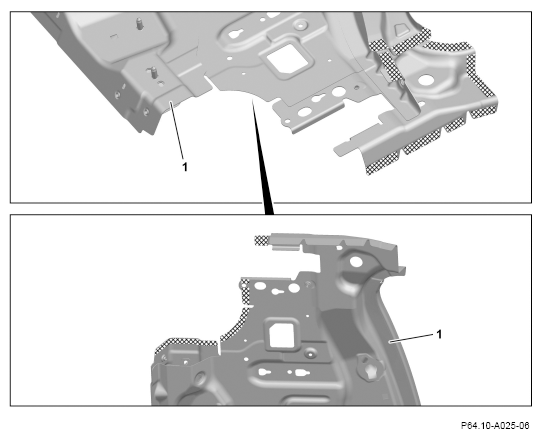

1. Grind mating surfaces on rear panel (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
