Rear Floor Assembly Front CROSSMEMBER Removal - Ar64.20-P-1140-01S

Model 223.0/1/9

The following operation steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

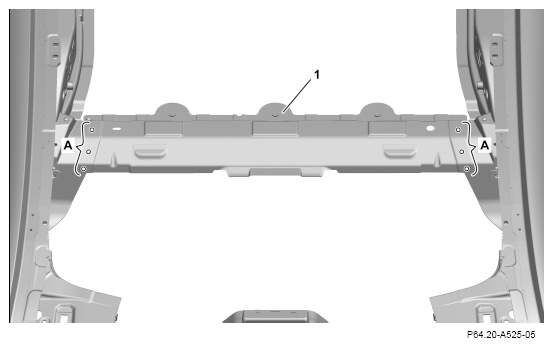

1. Expose self-pierce rivets at crossmember at rear-end floor (1) and drill off with ø 6 mm (areas A).

   Courtesy of MERCEDES-BENZ USA

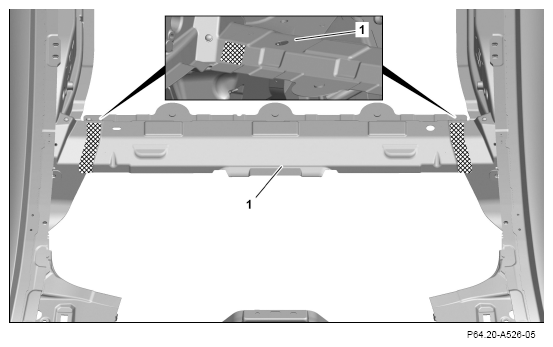

2. Heat crossmember at rear-end floor (1) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

3. Remove crossmember at rear-end floor (1).

   Courtesy of MERCEDES-BENZ USA

4. Grind mating surfaces down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

5. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
