Rear Floor Assembly CROSSMEMBER Installation - Ar64.20-P-1145-03S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk head rivet (Z)

1. Z₁ = Countersunk head rivet 6.4x14.0
2. Z₂ = Countersunk head rivet 6.4x15.5
3. Z₃ = Countersunk head rivet 6.4x17.0
4. Z₄ = Countersunk head rivet 6.4x19.0
5. Z₅ = Countersunk head rivet 6.4x21.0

Blind rivet (Y)

1. Y₁ = Rivet 6.4x12
2. Y₂ = Rivet 6.5x12.5
3. Y₃ = Rivet 6.5x14.5
4. Y₄ = Rivet 6.4M6
5. Y₅ = Rivet 6.4
6. Y₆ = rivet 6.5x13.5
7. Y₇ = rivet 6.4x14
8. Y₈ = rivet 6.4x17
9. Y₉ = rivet 6.4x20

Flow-form rivet with countersunk head (X)

1. X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
2. X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
3. X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
4. X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
5. X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
6. X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
7. X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

1. W₁ = Flow-form rivet structure with 3.5 mm clamping range
2. W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
3. W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
4. W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
5. W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
6. W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

1. V₁ = rivet 3.2x4.5
2. V₂ = rivet 3.2x6.5

Blind rivet (U)

1. U₁ = rivet 3.2x9.5

Blind rivet with countersunk head (T)

1. T₁ = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
2. T₂ = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range

The next steps are shown on model 223.1. The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also prescribes the direction in which the rivets must be set.

1. Install, fit and fix in place crossmember under the rear-end floor (1).

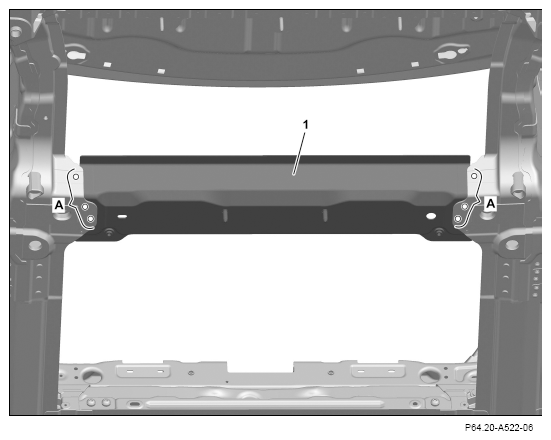

2. Drill rivet holes in the crossmember under the rear-end floor (1) with ø 6.7 mm (areas A).
3. Remove crossmember under the rear-end floor (1).
4. Deburr rivet holes in the crossmember under the rear-end floor (1) and in the body on both sides.
5. Remove drill chips.

   Courtesy of MERCEDES-BENZ USA

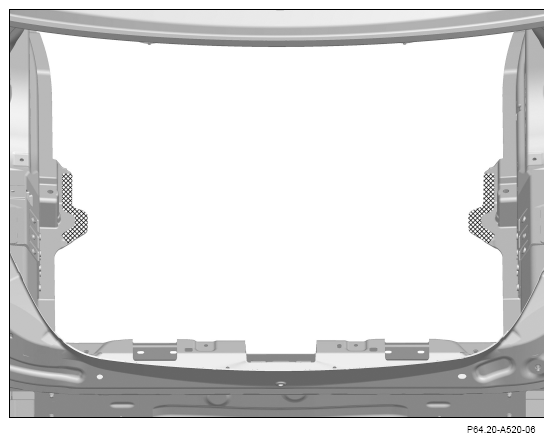

6. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

7. Install crossmember under the rear-end floor (1) and fix in place.

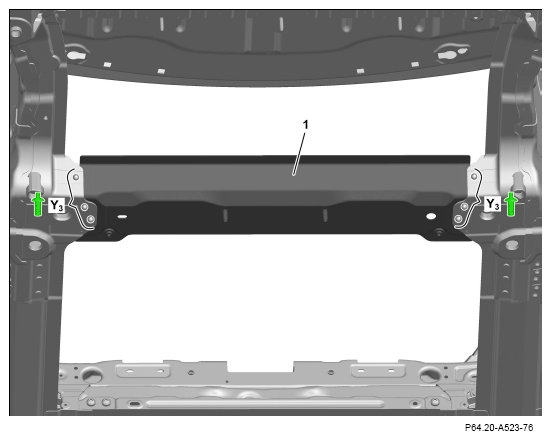

8. Rivet crossmember under the rear-end floor (1) with rivets ø 6.5x14.5 (areas Y₃ ).
