Front Of Rear Floor Assembly CROSSMEMBER Preparation - Ar64.20-P-1140-02S
Model 223.0/1/9
The next steps are shown on model 223.1.
The superordinate service document as well as the safety information in the service document must be observed.

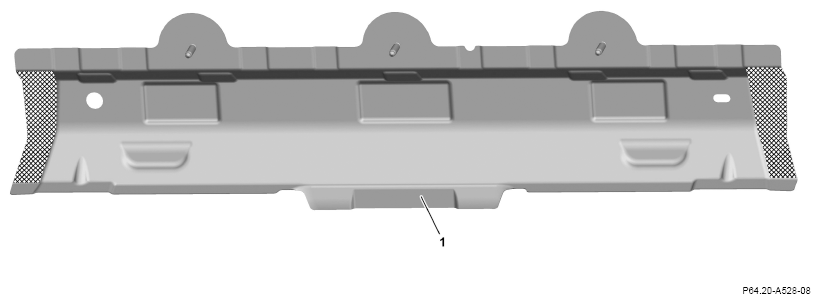

- Grind mating surfaces on the crossmember on the rear-end floor (1) down to bare metal in the cross-hatched areas.
Observe pretreatment of bonding surfaces.
- Remove grinding dust.
