CROSSMEMBER Preparation For Installation - Ar64.20-P-1060-11S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

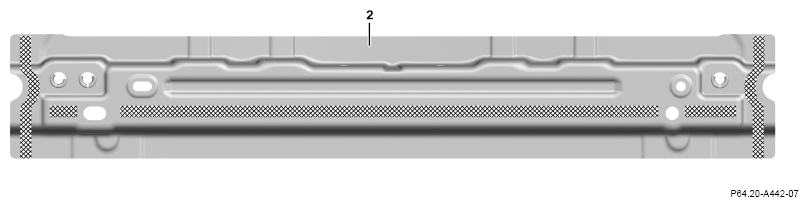

1. Grind mating surfaces on crossmember (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

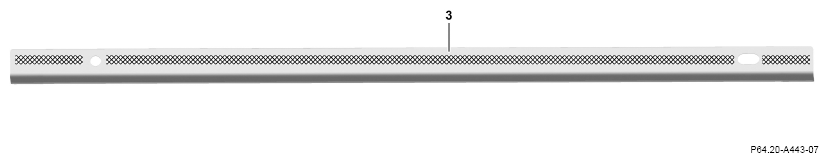

3. Grind mating surfaces on support angle (3) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.
