CROSSMEMBER Below Rear Floor Assembly Preparation For Installation - Ar64.20-P-1145-02S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

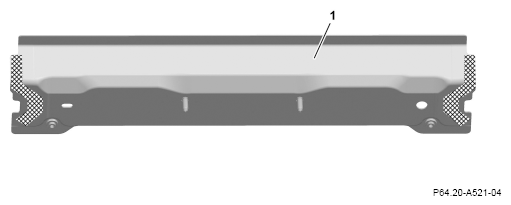

1. Grind mating surfaces on crossmember under rear-end floor (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.
