Bottom Rear Center Section Prepare For Installation - Ar64.20-P-1000-07S

Model 223.0/1/9

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

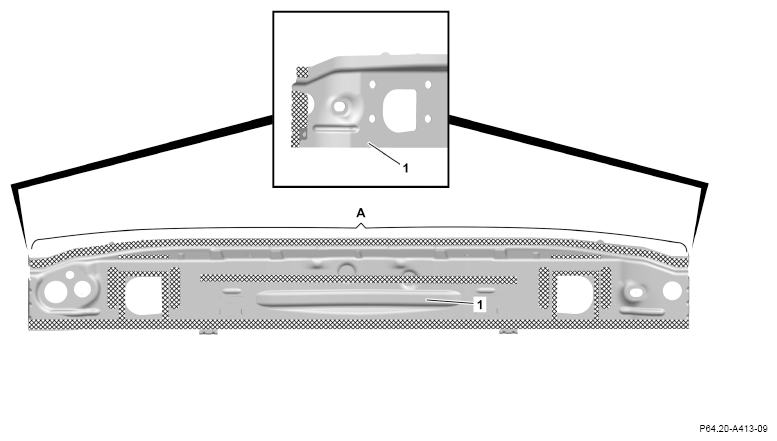

1. Grind mating surfaces on rear-end center section paneling (1) down to bare metal in cross-hatched areas.

   Grind mating surfaces down to bare metal on outside (area A).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

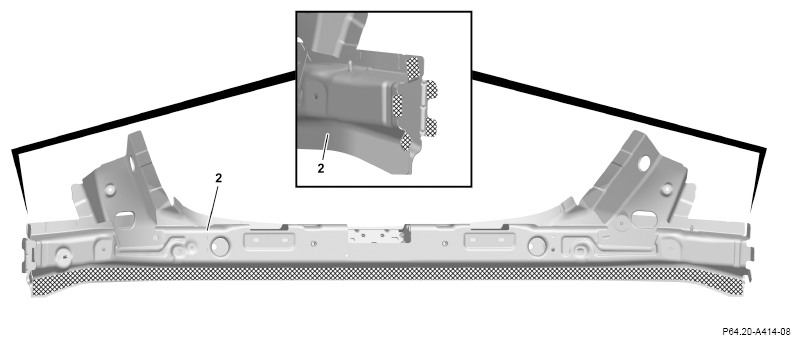

2. Grind mating surfaces on rear-end center section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

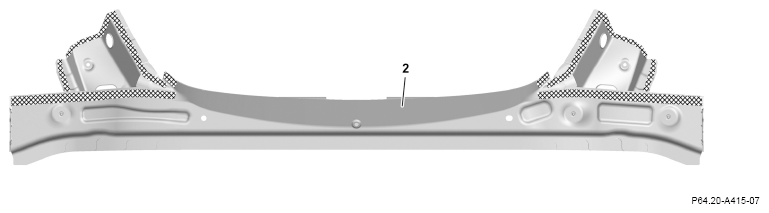

3. Grind mating surfaces on rear-end center section (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.
