Front Longitudinal Member Section Installation - Ar62.20-P-1260-20S

Model 223.0/1/9

03.03.2023

Operation step 12 and Figure P62.20-A214-78 with rivet Y9 revised.

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = rivet 6.4x12
• Y₂ = rivet 6.5x12.5
• Y₃ = rivet 6.5x14.5
• Y₄ = Rivet 6.4M6
• Y₅ = Rivet 6.4
• Y₆ = rivet 6.5x13.5
• Y₇ = rivet 6.4x14
• Y₈ = rivet 6.4x17
• Y₉ = rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V₁ = rivet 3.2x4.5
• V₂ = rivet 3.2x6.5

Blind rivet (U)

• U₁ = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T₁ = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
• T₂ = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

Courtesy of MERCEDES-BENZ USA

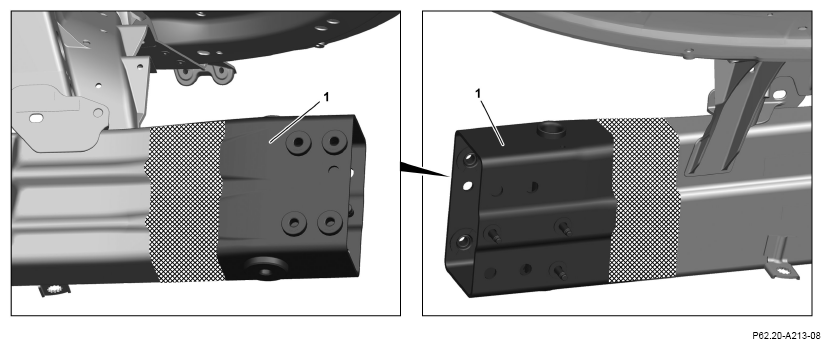

1. Install, align and fix longitudinal member front section (1) in place using straightening tool.
2. Install replacement part duplicators (2), fit and fix in place.
3. Drill rivet holes in longitudinal member front section (1) and in longitudinal member with Ø 6.7 mm through the existing holes in the replacement part duplicators (2) (areas A, B, C).
4. Countersink rivet holes in the replacement part duplicators (2) (areas B, C).
5. Remove replacement part duplicators (2) and longitudinal member front section (1).
6. Deburr rivet holes in longitudinal member front section (1), in the longitudinal member and in the replacement part duplicators (2) on both sides.
7. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

8. Install longitudinal member front section (1) and fix in place with straightening tool.
9. Apply 2-component adhesive to longitudinal member front section (1) and longitudinal member in the cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

10. Install the replacement part duplicators (2).

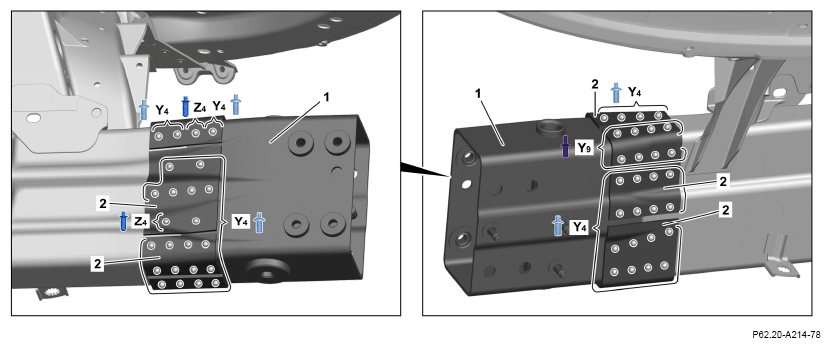

11. Rivet longitudinal member front section (1) and duplicators (2) with Ø 6.4x15.7 rivets (areas Y₄ ).
12. Rivet longitudinal member front section (1) and duplicator (2) with Ø 6.4x20 rivets (area Y₉ ).
13. Rivet longitudinal member front section (1) and duplicators (2) with Ø 6.3x19.5 countersunk-head rivets (areas Z₄ ).
