Function Schematic For Electric Parking Brake Emergency Braking - PE42.20-P-2501-97B
Model 223, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electric parking brake switch, status | 15E |
| 1 | Electric parking brake switch, status | 8D |
| 2 | Engine running, signal | 8G |
| 3 | Electric machine, status | 7G |
| 4 | Emergency stop, signal | 21G |
| 4 | Emergency stop, signal | 21C |
| 4 | Emergency stop, signal | 14E |
| 4 | Emergency stop, signal | 28C |
| 5 | Brake lights, request | 21C |
| 5 | Brake lights, request | 27C |
| 5 | Brake lights, request | 14E |
| 6 | Instrument cluster, message | 21G |
| 6 | Instrument cluster, message | 13E |
| 7 | Image data, signal | 28G |
| A40/18 | Instrument cluster display | 28J |
| CAN B1 | CAN 1 for vehicle interior | 26D |
| Code 200 | Conditionally automated driving | 9G |
| Code 200 | Conditionally automated driving | 11H |
| Code 503 | Pre-installation for Remote Parking Pilot | 11J |
| Code 503 | Pre-installation for Remote Parking Pilot | 9G |
| Code F206 | Model series 206 | 11G |
| Code F232 | Model series 232 | 11G |
| Code F254 | Model series 254 | 11G |
| Code F294 | Model series 294 | 9H |
| Code F294 | Model series 294 | 11H |
| Code F295 | Model series 295 | 11H |
| Code F295 | Model series 295 | 9G |
| Code F296 | Model series 296 | 11H |
| Code F296 | Model series 296 | 9H |
| Ethernet | Ethernet | 19D |
| Ethernet | Ethernet | 19H |
| Flex E | Chassis FlexRay | 6H |
| Flex E | Chassis FlexRay | 13F |
| HSVL | High-speed video link | 26H |

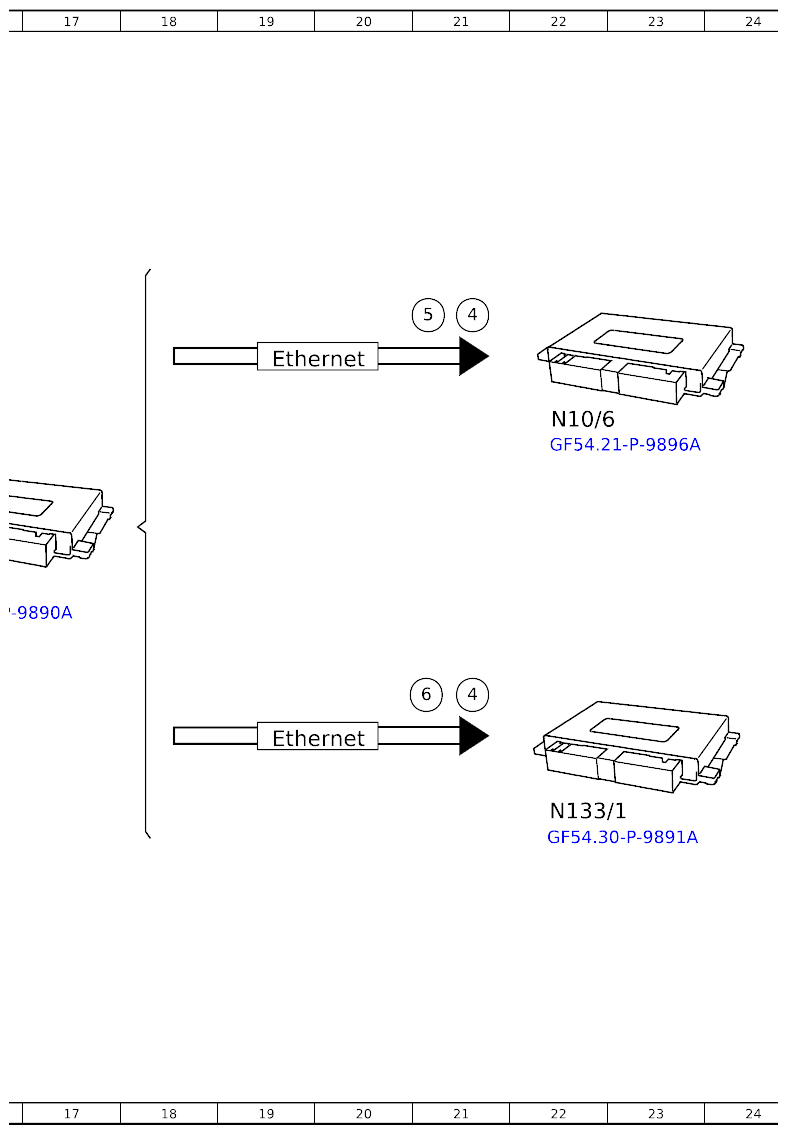

| N10/6 | Front SAM control unit | 22E |

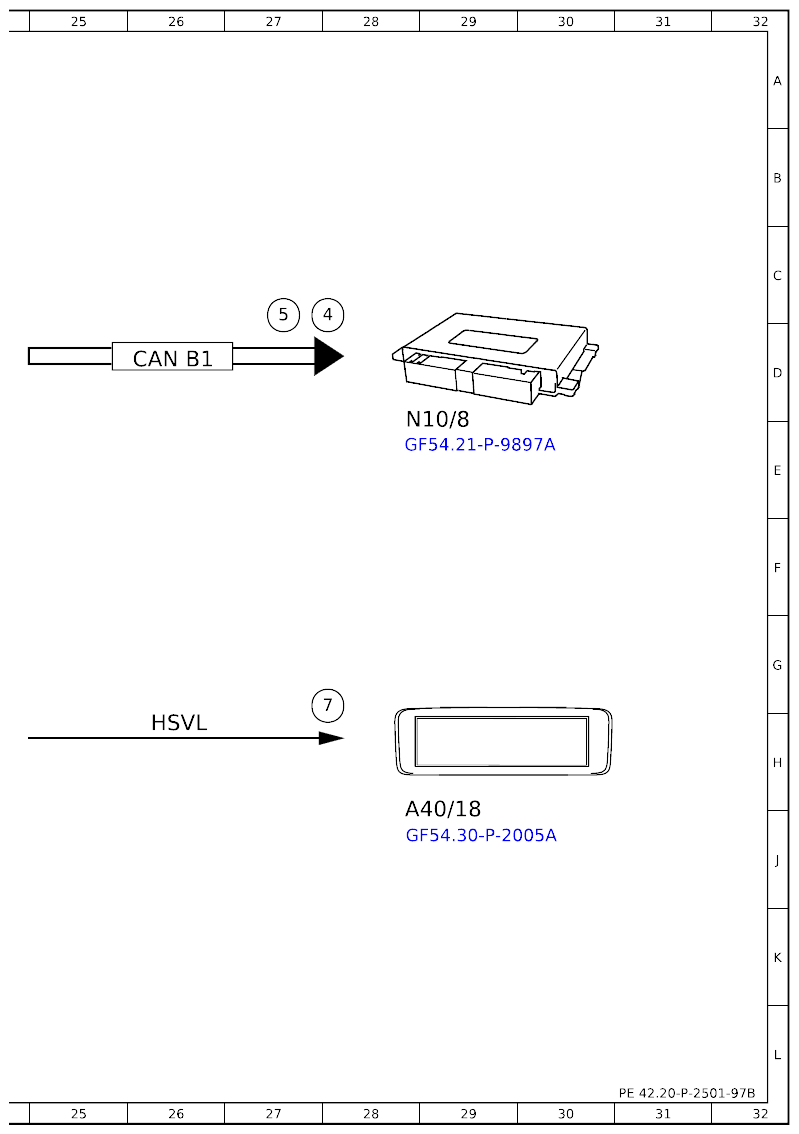

| N10/8 | Rear SAM control unit | 28E |
| N127 | Drivetrain control unit | 3H |
| N133/1 | Instrument cluster control unit | 22J |

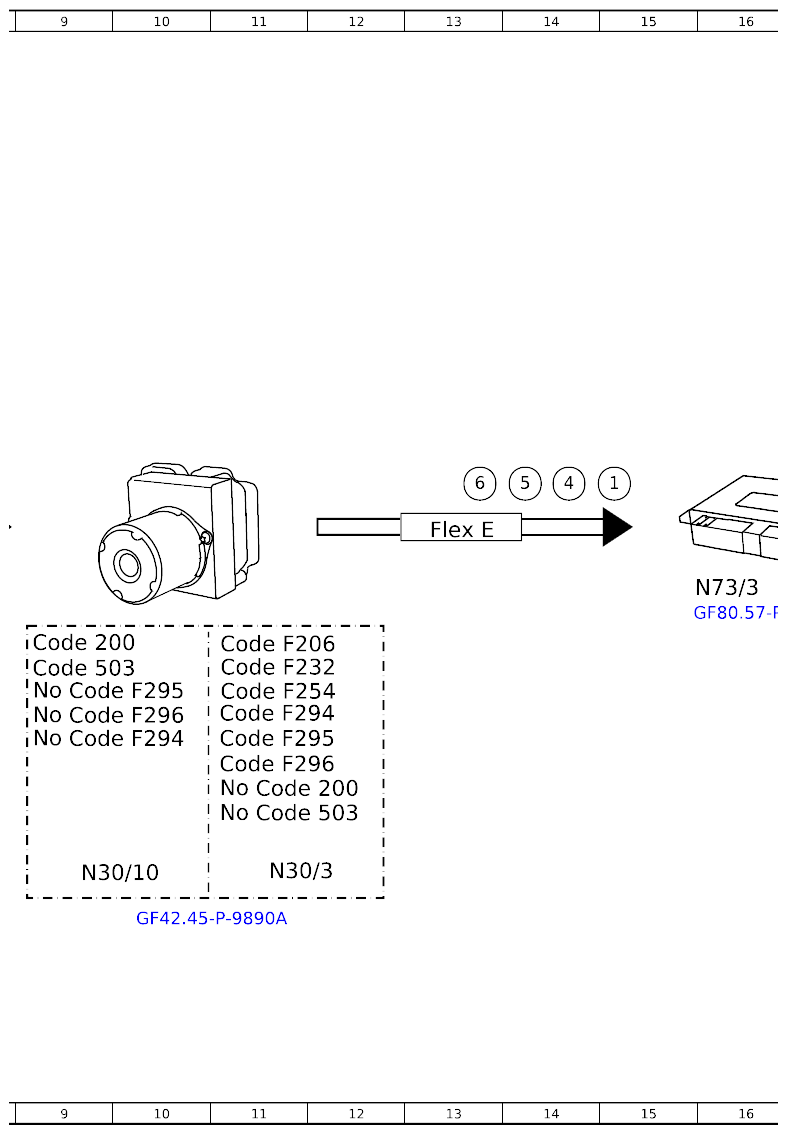

| N30/10 | Electronic Stability Program control unit | 9J |
| N30/3 | Electronic Stability Program control unit | 11J |
| N73/3 | Electronic ignition switch control unit | 15F |

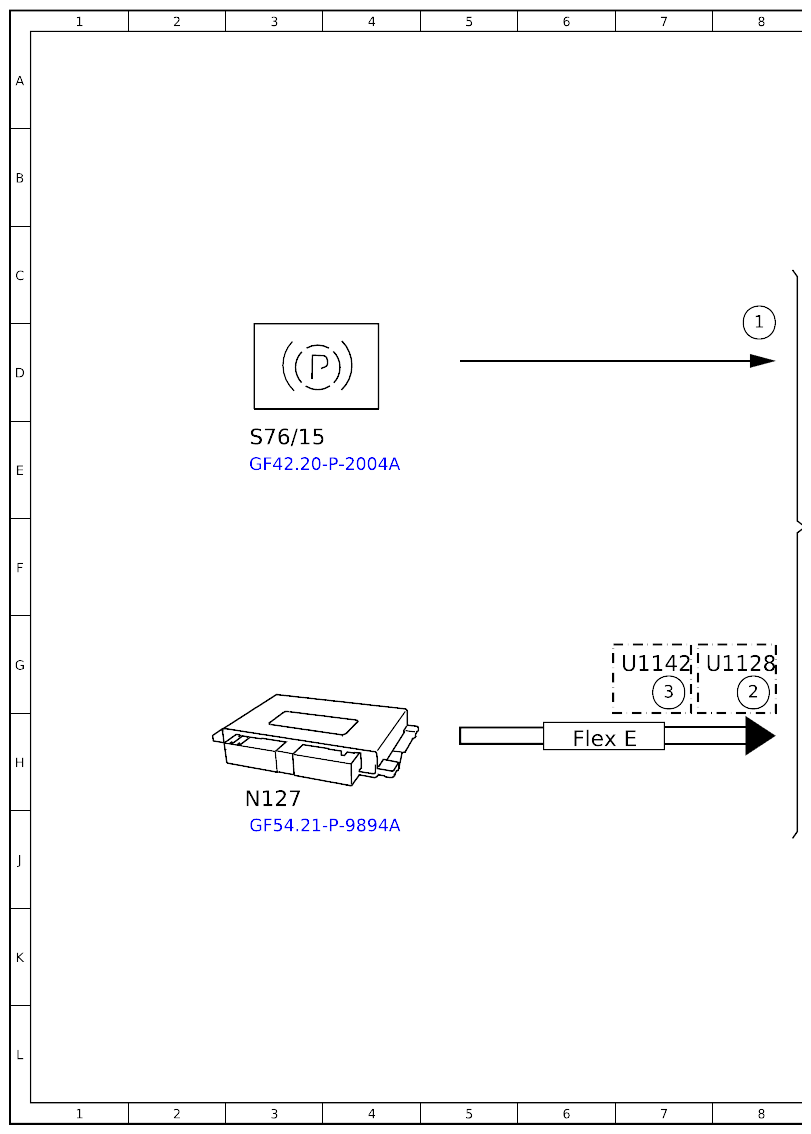

| S76/15 | Electric parking brake switch | 3E |
| U1128 | Valid for combustion engine | 7G |
| U1142 | Valid for electric vehicle | 7G |
