Brake System - Inspect Fluid Level - AP42.10-P-4210G
Model 206, 214, 223, 236, 254
Shown on model 223.163
Shown on model 236.347
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove | |||

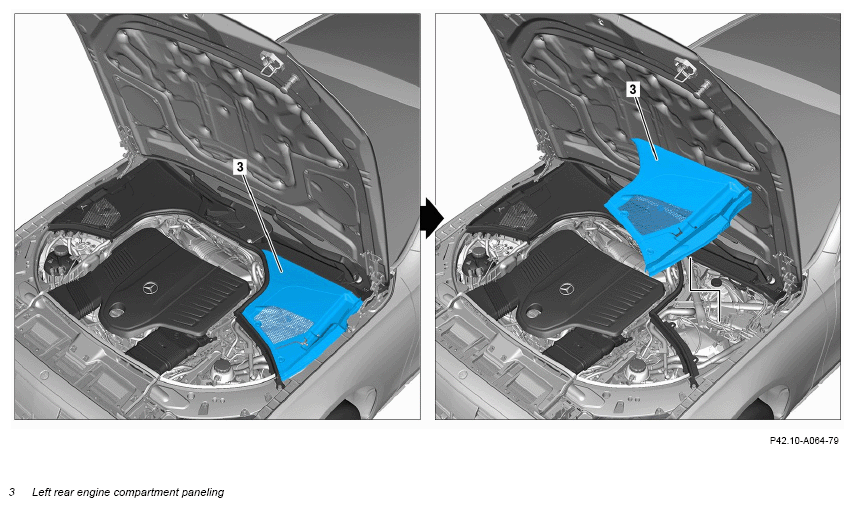

| 1 | Remove left rear engine compartment trim (3). | ||
| Check | |||

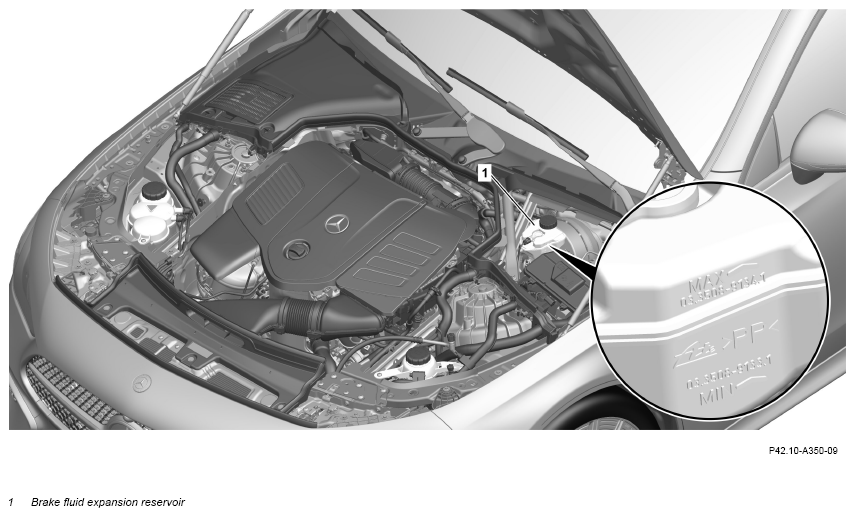

| 2 | Check fluid level in brake fluid expansion reservoir (1). | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| Brake fluids (DOT 4 plus) | If the fluid level is too low, ↓ rectify problem. If the fluid level is too high, ↓ extract brake fluid up to Max. marking. |
BB00.40-P-0331-00A | |
| Install | |||
| 3 | Install left rear engine compartment trim (3). |
