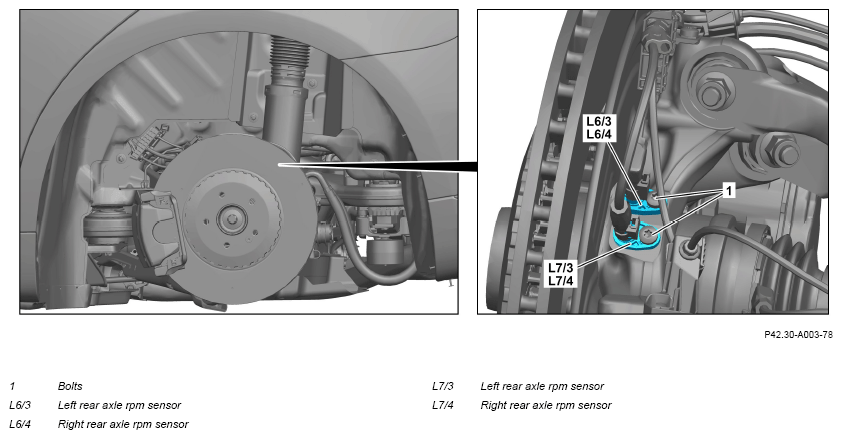

Remove/Install Rear Axle RPM Sensor - AR42.30-P-0716S
Model 223
Shown on left side of vehicle with code 200 (Conditionally automated driving)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove corresponding rear wheel. | AR40.10-P-1102A | |
| 2 | Disconnect electrical connector from rear axle rotational speed sensor (L6/3 L6/4, L7/3, L7/4). | with code 200 (Conditionally automated driving) Two rear axle rotational speed sensors (L6/3, L6/4, L7/3, L7/4) are installed for each wheel carrier. |
|
| 3 | Remove screw (1). | *BA42.30-P-1001-02M | |
| 4 | Remove rear axle rotational speed sensor (L6/3, L6/4, L7/3, L7/4). | with code 200 (Conditionally automated driving) Two rear axle rotational speed sensors (L6/3, L6/4, L7/3, L7/4) are installed for each wheel carrier. |
|
| 5 | Install in the reverse order. |
REAR AXLE RPM SENSOR
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA42.30-P-1001-02M | Screw, rpm sensor to wheel carrier | Nm | 8 |
