Remove/Install Master Brake Cylinder - AR42.10-P-0300S

Model 223

except code 200 (Conditionally automated driving)

except code 503 (Remote-controlled parking)

except code ME10 (Hybrid vehicle (plug-in, PHEV))

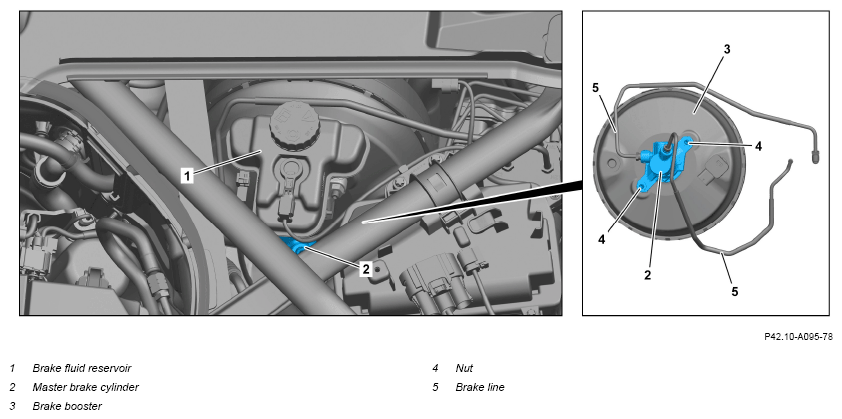

Fig 1: Master Brake Cylinder Components Location - Model 223 Except Code 200, 503, ME10

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Release vacuum in brake booster (3).	To do this, press the brake pedal several times with the engine switched off.
2	Remove brake fluid reservoir (1).		AR42.10-P-0308S
	Clean
3	Clean master brake cylinder (2) in area of connections of brake lines (5).	Before opening the hydraulic system the area around the separation point should be cleaned thoroughly. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open.
		Assembly cleaner	*BR00.45-Z-1028-04A
4	Remove brake lines (5) from master brake cylinder (2).	Model 223 except code 200 (Conditionally automated driving) except code 503 (Remote-controlled parking) except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) except code 200 (Conditionally automated driving) except code 503 (Remote-controlled parking) except code ME10 (Hybrid vehicle (plug-in, PHEV)) Retaining screw, brake line to master brake cylinder	*BA42.10-P-1002-04R
		Box wrench bit	Fig 3
5	Seal connection fittings at master brake cylinder (2).	Record plug	Fig 4
6	Detach brake lines (5) from hydraulic unit and rotate brake lines (5) to one side.	Model 223 except code 200 (Conditionally automated driving) except code 503 (Remote-controlled parking) except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) except code 200 (Conditionally automated driving) except code 503 (Remote-controlled parking) except code ME10 (Hybrid vehicle (plug-in, PHEV)) Retaining screw, brake line to hydraulic unit	*BA42.10-P-1001-04R
		Box wrench bit	Fig 3
7	Remove nuts (4).	Nut, brake master cylinder to brake booster	*BA42.10-P-1001-05K
8	Remove master brake cylinder (2) from brake booster (3).	Do not tilt the master brake cylinder (2); pull it forward and in a straight line out of the brake booster (3). Otherwise the push rod will be pressed out of its axial position. Collect brake fluid which runs out with an absorbent rag. Otherwise, the paint will be damaged. Replace sealing ring between master brake cylinder (2) and brake booster (3).
		Assembly tool	Fig 2
9	Install in the reverse order
10	Bleed brake system.
	Check
11	Check brake system for leaks.		AR42.10-P-0015S
12	Perform brake test on test stand.
			AP42.00-P-4290BS

Fig 2: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Box Wrench Bit (140 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
