Remove/Install Front Axle Brake Disk - AR42.10-P-0230S

Model 223

Courtesy of MERCEDES-BENZ USA

Shown with code B07 (AMG - Ceramic brake system)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on evaluating brake disks with and without wear holes		AH42.10-P-9406-14A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove corresponding front wheel.		AR40.10-P-1102A
2	Remove brake caliper with brakepads and secure at vehicle free of tension with connected lines.	Model 223 with code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Model 223 with code B07 (AMG - ceramic brake system) except code B06 (Silver brake calipers) except code U70 (red-painted brake callipers) Model 223 with code U70 (red-painted brake callipers) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system)	AR42.10-P-0070SA
		Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function.	AR42.10-P-0070S

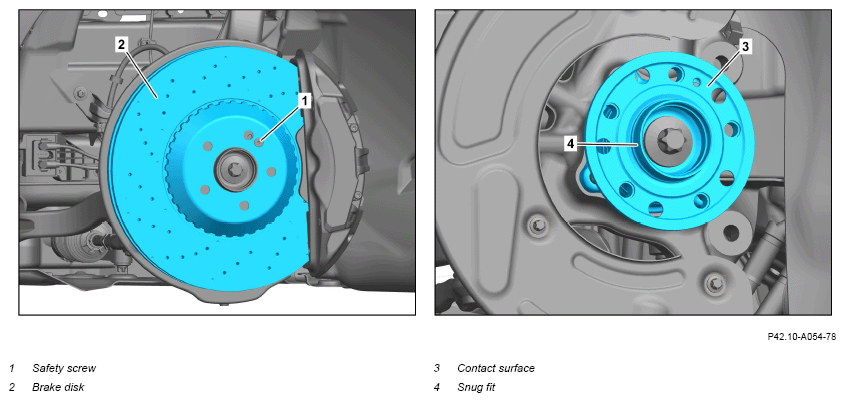

3	Unscrew safety screw (1) and remove brake disk (2).
	Check
4.1	Check condition of brake disk (2) and check for wear.	Model 223 except code B07 (AMG - ceramic brake system)
		If there is a problem, ↓ Replace brake disks (2).	AP42.10-P-4256A
4.2	Check condition of brake disk (2) and check for wear.	Model 223 with code B07 (AMG - ceramic brake system)
		If there is a problem, ↓ replace corresponding brake disk (2).	AR42.10-P-0270RG
	Install
5	Clean contact surface (3) and interference fit (4).	Do not use sharp-edged or pointed objects. Otherwise, the contact surface (3) and interference fit (4) will be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
6	Apply light coating of grease to interference fit (4) of brake disk (2). j	Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
7	Position brake disk (2) and screw in safety screw (1).	Replace safety screw (1).
		Bolt, front axle brake disk to wheel hub	*BA42.10-P-1001-06I
8	Install brake caliper.	Model 223 with code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Model 223 with code B07 (AMG - ceramic brake system) except code B06 (Silver brake calipers) except code U70 (red-painted brake callipers) Model 223 with code U70 (red-painted brake callipers) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system)	AR42.10-P-0070SA

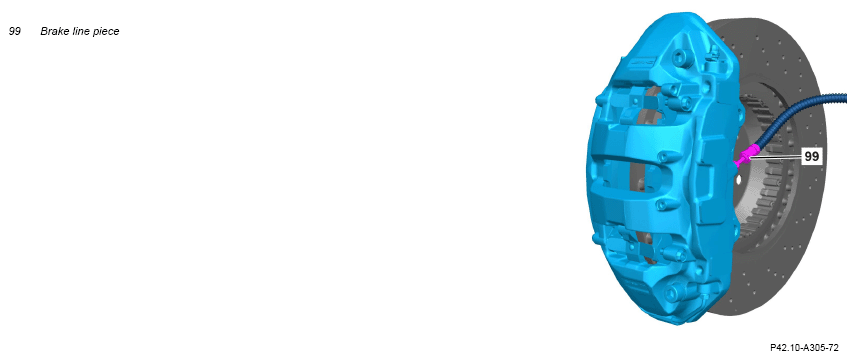

		Model 223 except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function. The brake line pieces (99) of the brake hoses must not be bent. Replace the affected brake hoses with damaged brake line pieces (99) immediately. If brake line piece (99) is damaged, ↓ replace affected brake hose.	AR42.10-P-0070S
		Model 223 except code Z07 (B7 armoring on special protection version)	AR42.10-P-0026S
