Remove/Install Brake Cover Plate Of Rear Disk Brake - AR42.10-P-0006S

Model 223

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1.1	Remove brake disk on rear axle.	Model 223 except code Z07 (B7 armoring on special protection version)	AR42.10-P-0240S
1.2	Remove wheel hub.	Model 223 with code Z07 (B7 armoring on special protection version)	AR33.20-P-0311SG

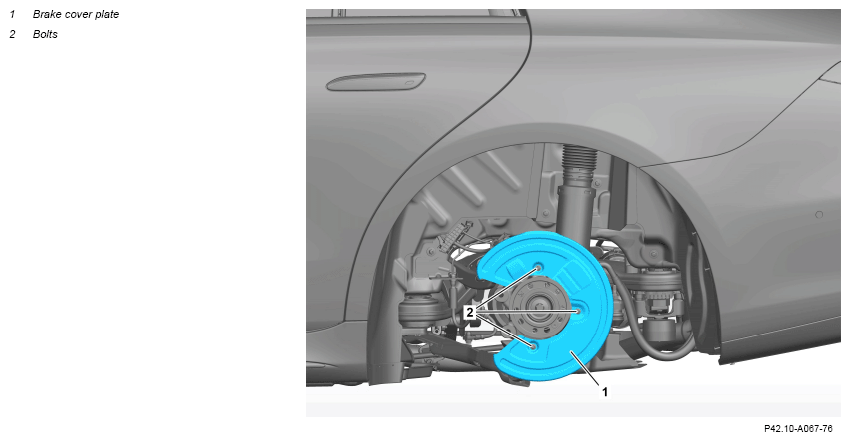

2	Remove bolts (2).	Bolt, brake cover plate to wheel carrier	*BA42.10-P-1004-06I
3	Remove brake cover plate (1).
4	Install in the reverse order.

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation		Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA42.10-P-1004-06I	Bolt, brake cover plate to wheel carrier	Nm	20	14
