Remove/Install Brake Cover Plate Of Front Disk Brake - AR42.10-P-0005S

Model 223

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove brake disk from front axle.		AR42.10-P-0230S

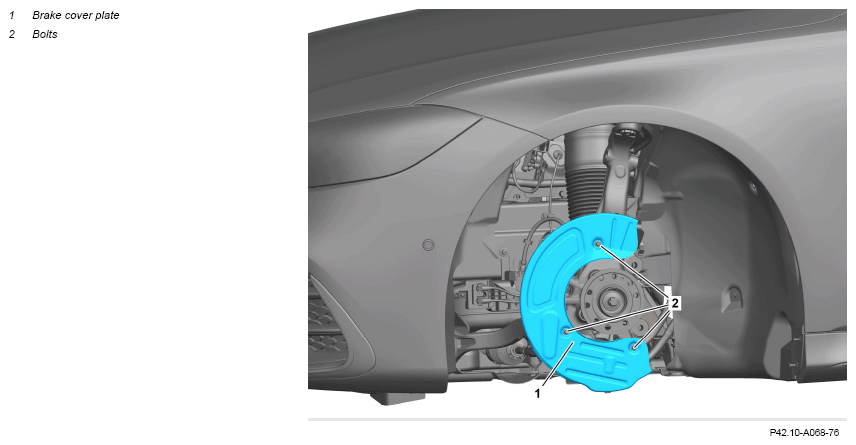

2	Remove bolts (2).	Bolt brake cover plate on steering knuckle	*BA42.10-P-1002-06I
3	Remove brake cover plate (1).
4	Install in the reverse order.

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation		Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA42.10-P-1002-06I	Bolt brake cover plate on steering knuckle	Nm	20	14
