Remove/Install Rear Panoramic Sliding Sunroof Roller Sunblind Motor - AR77.21-P-0495S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)

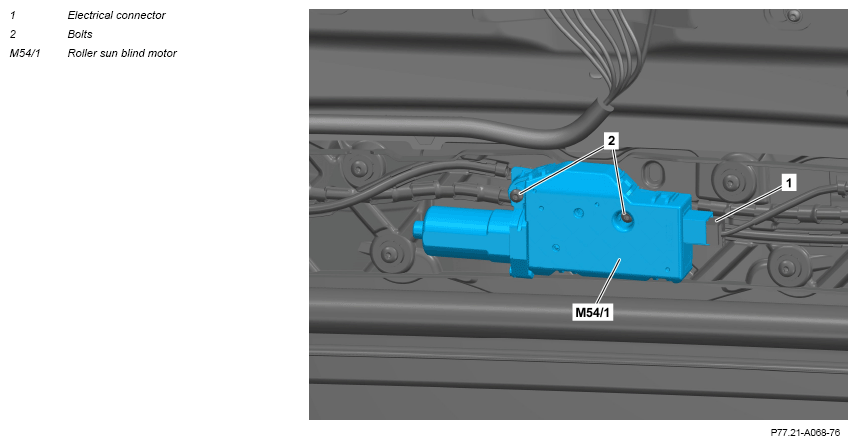

Fig 1: Rear Panoramic Sliding Sunroof Roller Sunblind Motor Components Location - Model 223 With Code 413
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove roof lining and place in vehicle. | AR68.30-P-4300S | |
| Model 223 with code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) |
|||
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew screws (2) and remove roller sunblind motor (M54/1). | ||
| 4 | Install in the reverse order. |
