Prepare Front Fixed Element Of Panoramic Sliding Sunroof For Installation - AR77.21-P-0803-02S

Model 223

with code 413 (Panoramic sliding sunroof/glass roof)

Notice

Notes on removal/installation of bonded elements of panoramic roof

MODIFICATION NOTES

17.06.2021

Operation step added.

Operation step 7

TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number	Designation			Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BE67.10-P-1001-01E	Distance between top edge of window and front edge of roof	Dimension "A"	mm	3, 5 (±1, 5)	3, 5 (±1, 5)
BE67.10-P-1001-01E	Distance between top edge of window and front edge of roof	Picture		AR67.10-P-1000-09S	-

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1062-02A	Adhesive fabric tape	A 007 989 28 85

Courtesy of MERCEDES-BENZ USA

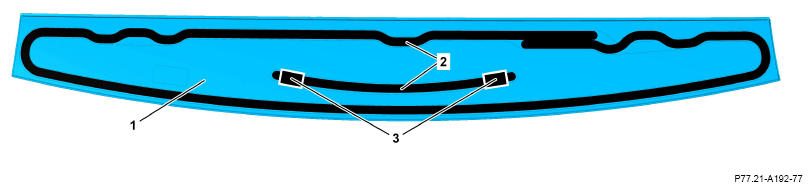

Shown on front fixed element (1) with adhesive retainers (3) as of modification year 22/1

Set down front fixed element (1), with inside facing upward, on a suitable base.
Clean bonding surfaces (2) at front fixed element (1).
Do not damage adhesive retainers (3).

The cleaner is an integral part of the adhesive kit.

Apply cleaner only to the bonding surfaces (2) and allow to dry completely.

Courtesy of MERCEDES-BENZ USA

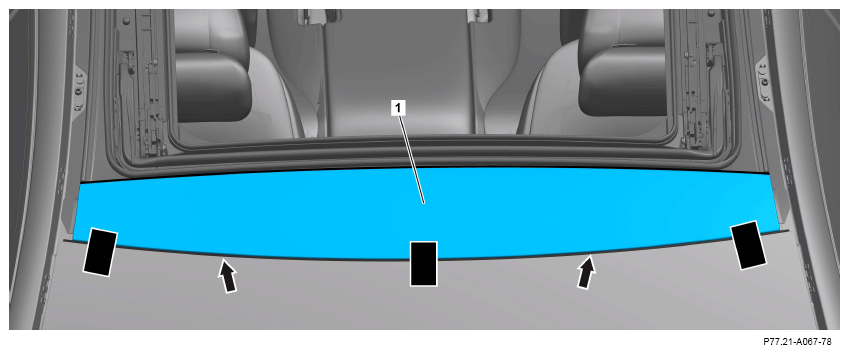

Mount front fixed element (1) on body and align the clearance between the windshield upper edge and the roof front edge using the feeler gauge.
Center front fixed element (1) between side roof panelings and windshield.

Observe installation position of windshield seal (arrows).

Aid of helper required.
The Glue on tape strips and cut through at front edge of front fixed element (1).
Set down front fixed element (1), with inside facing upwards, on a suitable base.
Apply activator to bonding surfaces (2) at front fixed element (1).
The flash-off time of the activator is 15 min.

The activator is an integral part of the adhesive kit.
Apply primer to bonding surfaces (2) at front fixed element (1).
The flash-off time of the primer is 15 min.

The primer is an integral part of the adhesive kit.
