Prepare Body Flange For Rear Fixed Element Of Panoramic Sliding Sunroof For Installation - AR77.21-P-0802-03S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)
| Notice | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
Bonding surfaces must be free from dust, oil, grease, wax, dirt residues and other adhesive components.
Otherwise, there may be adhesion problems.
Only use the adhesive kit indicated in the XENTRY Portal parts information.

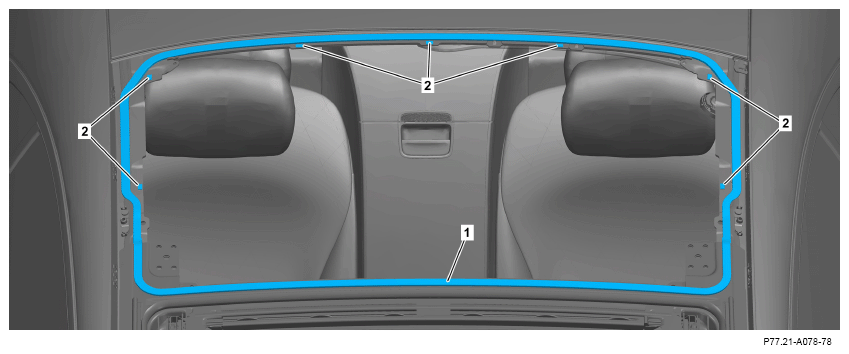

- Cut back adhesive bead (1) at body flanges to a height of approx. 1 to 2 mm using a scraper.
- Fully cut back remainders of spacers (2) and the adhesive bead (1) present in these areas.
- Remove cutting residues at body flanges.
- Repair paintwork damage at body flanges.
Use only primer filler approved by Daimler AG: https://xentry.daimler.com
Observe the manufacturer's specifications for the curing and processing time of the primer filler.
- Apply primer in case of missing residual adhesive material in bonding area.
Apply primer only after primer has dried. Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
- Once primer has dried, glue new spacers (2) onto body flanges.
