Install Rear Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0802-05S

Model 223

with code 413 (Panoramic sliding sunroof/glass roof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

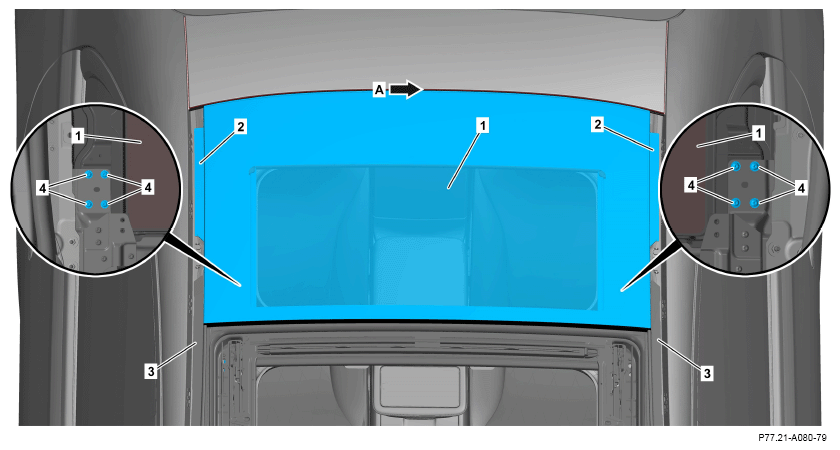

1. Position rear fixed element (1), carefully place on adhesive bead and lightly press on.

   Two helpers are required.

2. Align rear fixed element (1) with rear roof paneling and set to gap dimension (A) determined before removal using feeler gauge.
3. Center side elements (2) of rear fixed element (1) to front roof paneling (3).

   Side elements (2) of rear fixed element (1) must align with front roof paneling (3).

4. Mount drip rails and check lateral alignment of rear fixed element (1), correct if necessary.

   Only remove drip rails again after curing of adhesive material.

5. Place suitable loads on rear stationary element (1) during curing time of adhesive.

   Use flat weights, e. g. sandbags.

   Otherwise the rear stationary element (1) can be damaged.

6. Screw in screws/bolts (4).
7. Carefully remove cup suction tool.
8. Remove drip rails.
