Remove/Install Rear Wall Paneling - AR68.30-P-4750SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid. | ||

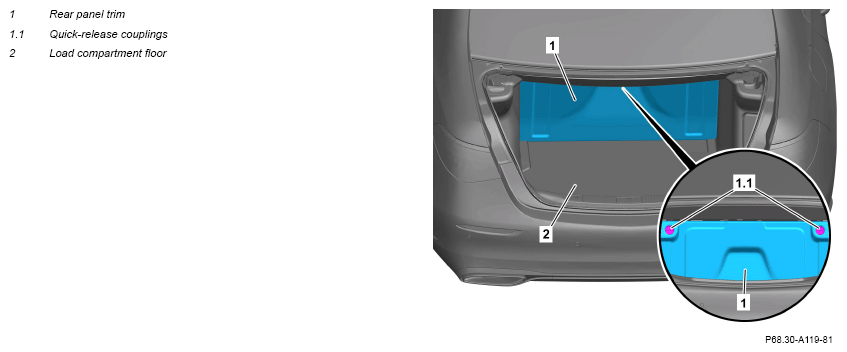

| 2 | Release quick-release fasteners (1.1) at top at rear panel trim (1). | ||
| 3 | Fold rear panel trim (1) at top rearward. | ||
| 4 | Remove rear panel trim (1). | ||
| 5 | Install in the reverse order. |
