Outer Side Longitudinal Member Assembly Installation - Ar63.30-P-1000-04S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk head rivet (Z)

• Z₁ = Countersunk-head rivet 6.4x14.0
• Z₂ = Countersunk-head rivet 6.4x15.5
• Z₃ = Countersunk-head rivet 6.4x17.0
• Z₄ = Countersunk-head rivet 6.4x19.0
• Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = Blind rivet 6.4x12.0
• Y₂ = Blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ =blind rivet 6.5X13.5
• Y₇ =Blind rivet 6.4x14.0
• Y₈ =Blind rivet 6.4x17.0
• Y₉ =Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Structured flow form rivet with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also prescribes the direction in which the rivets must be set.

Courtesy of MERCEDES-BENZ USA

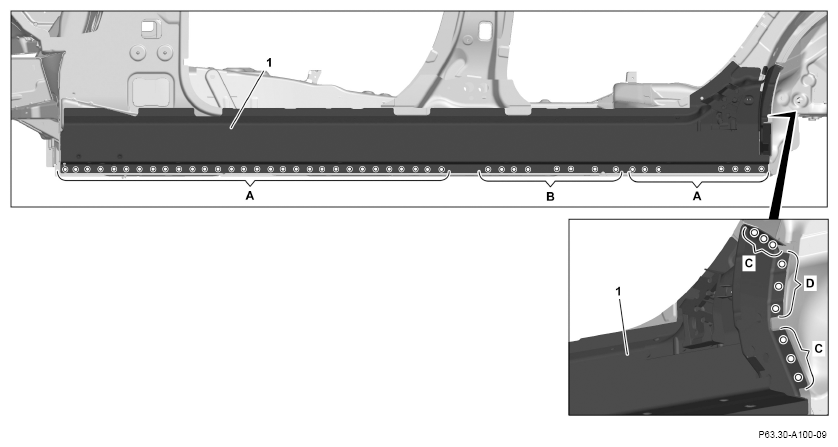

1. Transfer positions of the existing holes in the body to the outer side longitudinal member (1) with drill hole finder (area B).
2. Install, fit and fix in place outer side longitudinal member (1) using straightener.
3. Drill rivet holes in outer side longitudinal member (1) with Ø 6.7 mm through the existing holes in the body (areas A).
4. Drill holes for screws in outer side longitudinal member (1) with Ø 6.5 mm (areas C).
5. Drill holes in outer side longitudinal member (1) with Ø 6.7 mm (area D).
6. Remove straightener and remove outer side longitudinal member (1).
7. Drill rivet holes in the positions transferred using the drill hole finder in the outer side longitudinal member (1) with Ø 6.7 mm (area B).
8. Deburr rivet holes in the outer side longitudinal member (1) and body on both sides.
9. Remove drill chips.

   Courtesy of MERCEDES-BENZ USA

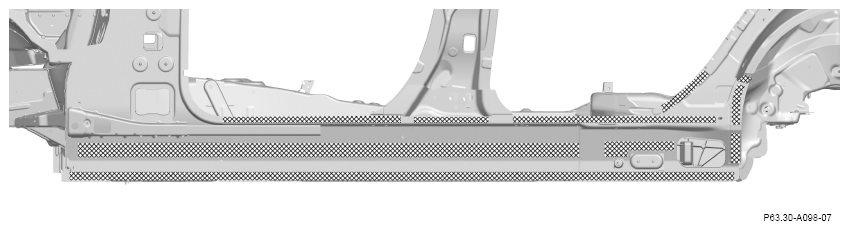

10. Apply 2-component adhesive to body in cross-hatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

11. Install outer side longitudinal member (1) and fix in place.

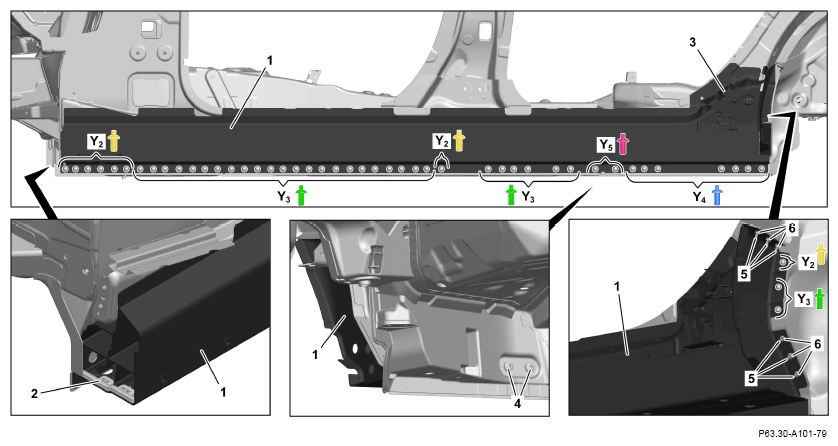

12. Rivet outer side longitudinal member (1) with rivets Ø 6.5x12.5 (areas Y₂ ).
13. Rivet outer side longitudinal member (1) with rivets Ø 6.5x14.5 (areas Y₃ ).
14. Rivet outer side longitudinal member (1) with Ø 6, 4 M6 rivets (area Y₄ ).
15. Rivet outer side longitudinal member (1) with Ø 6, 4 rivets (area Y₅ ).
16. Screw in screws (4).
17. Position screws (5).

    Use screws (5) M6x20.

18. Tighten nuts (6).

    Use nuts (6) M6.

19. Insert acoustic foam (2) with sealing compound in the outer side longitudinal member (1).
20. Attach structural foam (3) to the outer side longitudinal member (1) with the 2-component adhesive for reinforcements.
