Outer Rear Wheel Well Preparation For Installation - Ar63.10-P-0670-05S

Model 223.0/1/9

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

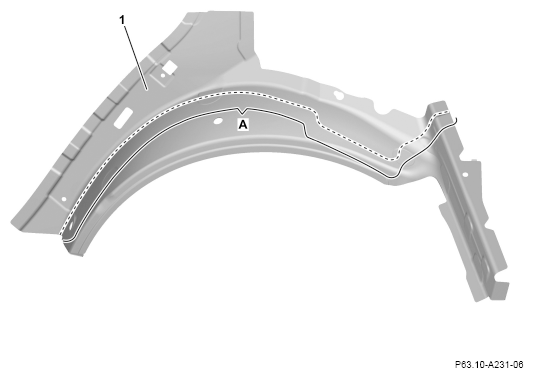

1. Mark separating point on outer rear wheel well (1) and cut (area A).

   Transfer separation point from vehicle and add approx. 2 cm for overlap.

2. Remove remaining piece from outer rear wheel well (1).

   Courtesy of MERCEDES-BENZ USA

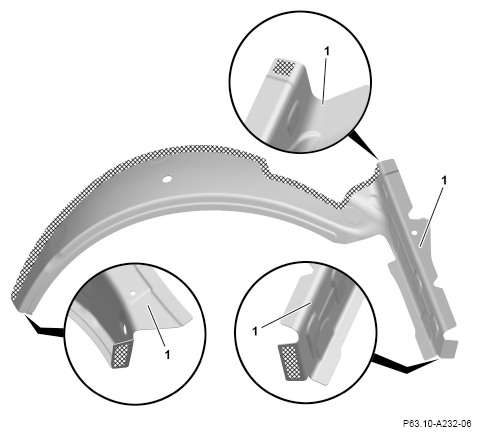

3. Grind mating surfaces on outer rear wheel well (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
