Rear Roof Frame Mounting Support Preparation For Installation - Ar65.20-P-1008-09S

Model 223.0/1/9

The following steps are shown on model 223.1 on the left side of the vehicle and must be performed in the same way on the right side of the vehicle. The superordinate service document as well as the safety information in the service document must be observed.

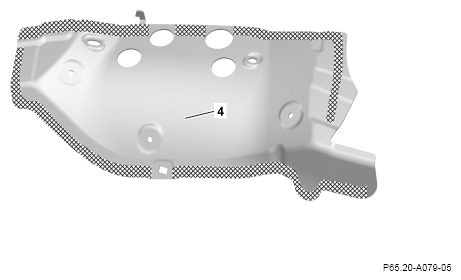

1. Grind mating surfaces on roof frame mounting support (4) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
