Rear Roof Frame Mounting Support Installation - Ar65.20-P-1008-10S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

1. Z₁ = Countersunk-head rivet 6.4x14.0
2. Z₂ = Countersunk-head rivet 6.4x15.5
3. Z₃ = Countersunk-head rivet 6.4x17.0
4. Z₄ = Countersunk-head rivet 6.4x19.0
5. Z₅ = Countersunk-head rivet 6.4x21.0

Blind rivet (Y)

1. Y₁ = Rivet 6.4x12.0
2. Y₂ = Rivet 6.5x12.5
3. Y₃ = Rivet 6.5x14.5
4. Y₄ = Rivet 6.4 M6
5. Y₅ = Rivet 6.4
6. Y₆ = rivet 6.5x13.5
7. Y₇ = Rivet 6.4x14.0
8. Y₈ = Rivet 6.4x17.0
9. Y₉ = rivet 6.4x20

Flow-form rivet with countersunk head (X)

1. X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
2. X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
3. X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
4. X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
5. X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
6. X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
7. X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

1. W₁ = Structured flow form rivet with 3.5 mm clamping range
2. W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
3. W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
4. W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
5. W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
6. W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

1. V₁ = rivet 3.2x4.5
2. V₂ = rivet 3.2x6.5

Blind rivet (U)

1. U₁ = rivet 3.2x9.5

Blind rivet with countersunk head (T)

1. T₁ = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
2. T₂ = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range

Welding variants

1. EE = MIG continuous weld
2. FF = MIG plug welding

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle. The superordinate service document as well as the safety information in the service document must be observed.

The diagrams show the vehicle from the perspective of the technician. At the same time, this view also specifies in what direction the rivets must be set.

Courtesy of MERCEDES-BENZ USA

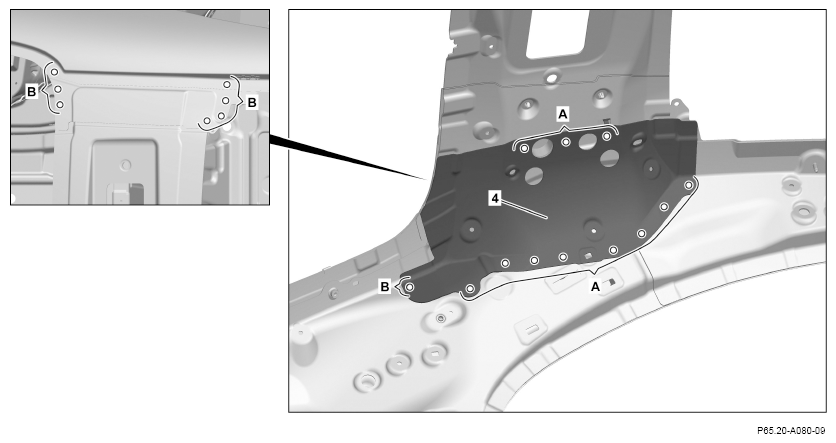

1. Install, fit and fix in place roof frame mounting support (4).
2. Drill rivet holes in roof frame mounting support (4) with ø 6.7 mm (areas A, B).
3. Countersink rivet holes in roof frame mounting support (4) (areas B).
4. Remove roof frame mounting support (4).
5. Deburr rivet holes at roof frame mounting support (4) and at body on both sides.
6. Remove drill chips.

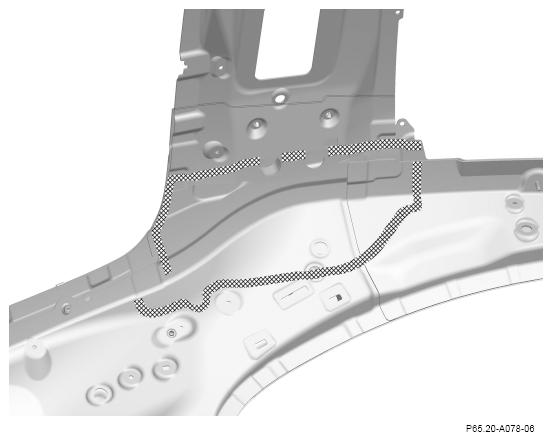

7. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

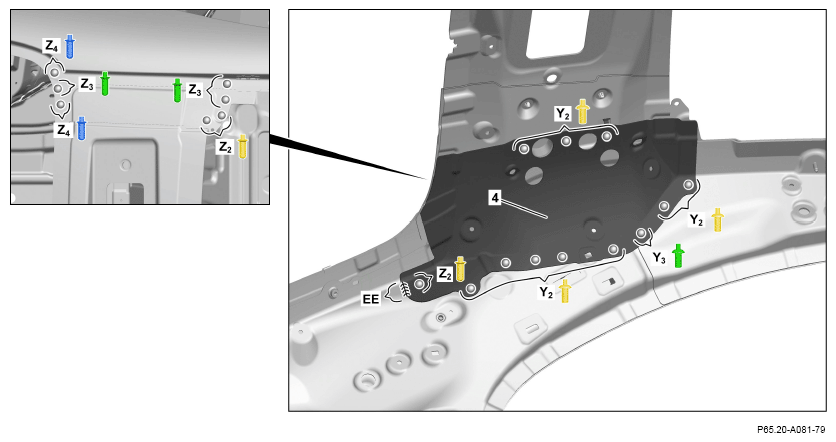

8. Install and fix in place roof frame mounting support (4).
9. Rivet roof frame mounting support (4) with rivets ø 6.5x12.5 (areas Y₂ ).
10. Rivet roof frame mounting support (4) with rivet ø 6.5x14.5 (area Y₃ ).
11. Rivet roof frame mounting bracket (4) with ø 6.4x15.5 countersunk-head rivets (areas Z₂ ).
12. Rivet roof frame mounting bracket (4) with ø 6, 4x17.0 countersunk-head rivets (areas Z₃ ).
13. Rivet roof frame mounting bracket (4) with ø 6.4x19.0 countersunk-head rivets (areas Z₄ ).
14. Produce MIG weld seam (area EE) at roof frame mounting support (4) for ground connection.
