Check Setting Of High Beam - AP82.10-P-8260-02L

Model 223

Shown on model 223 with ECE version headlamp

Courtesy of MERCEDES-BENZ USA

Shown on headlamp in model 223 with code 641 (Dynamic LED headlamp for left-hand traffic)

Courtesy of MERCEDES-BENZ USA

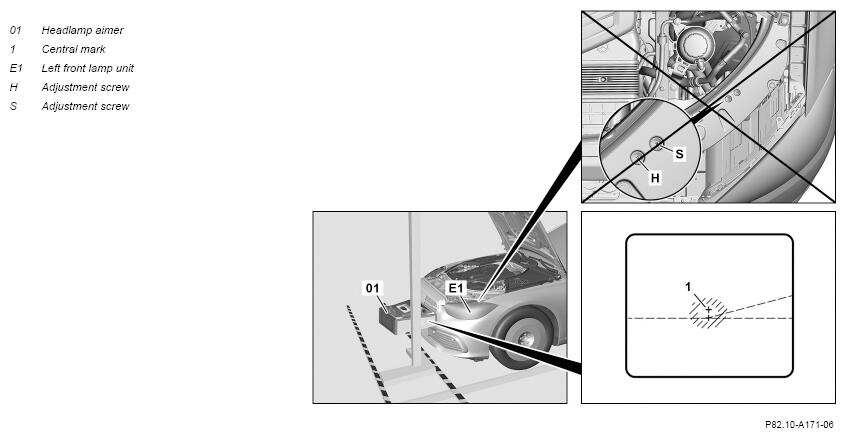

1. Align headlamp adjuster (01) parallel to vehicle at height of left high beam (21) in front left lamp unit (E1).

   Only after check for correct low beam adjustment.

   Ensure that headlamp adjuster (01) is aligned in front of front left high beam (21).

   Otherwise the high beam cannot be properly checked.

   Proceed with the right along the same lines as the left.

2. Check setting of high beam.

   Courtesy of MERCEDES-BENZ USA

   Do not perform any correction to headlamp adjustment screws (H, S).

   Otherwise, the previously adjusted low beams will be mis-adjusted.

   The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).

   If high beam setting is not correct,

   ↓

   rectify the problems.

   After obtaining special order.

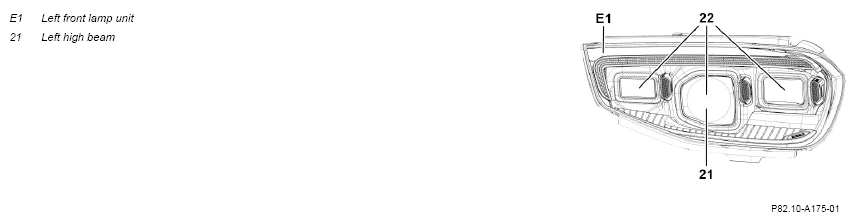

Shown on headlamp in model 223 with code 317 (Digital LED headlamp for left-hand traffic)
