Remove/Install Washer Fluid Reservoir Heat Exchanger - AR82.35-P-6006S
Model 223
with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||

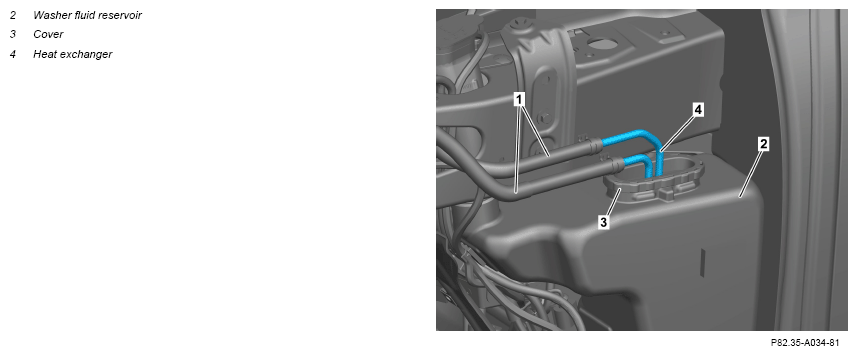

| 1 | Remove washer fluid reservoir (2). | AR82.35-P-6000S | |
| 2 | Unclip cap (3). | ||
| 3 | Guide heat exchanger (4) out of washer fluid reservoir (2). | ||
| 4 | Install in the reverse order. |
