Remove/Install USB Port On Rear Passenger Compartment Armrest - AR82.60-P-1044S
Model 223
with code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Fold armrest (1) forward. | ||
| 3 | Unhook fabric cover from rear armrest (1). | ||
| 4 | Remove screw/bolts (2). | ||
| 5 | Open stowage compartment (3). | ||
| 6 | Remove lock of stowage compartment (3) and unscrew screw (4) underneath. | ||

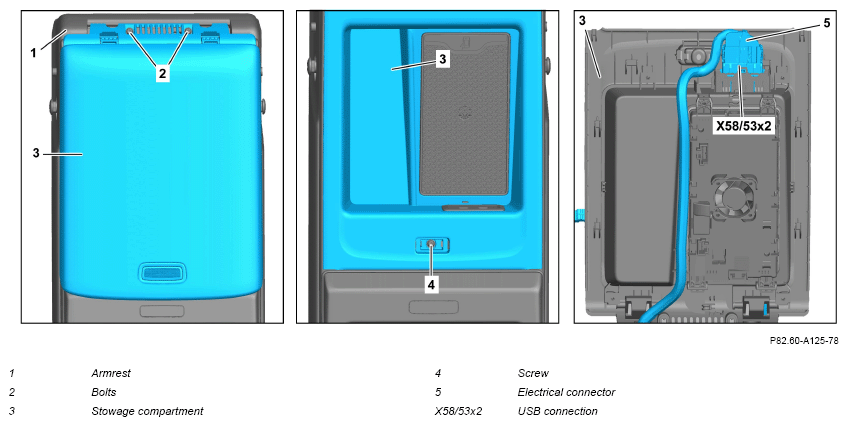

| 7 | Remove stowage compartment (3) and place to one side with electric lines connected. | Fig 1 | |
| 8 | Disconnect electrical connector (5). | ||
| 9 | Remove USB port (X58/53x2). | ||
| 10 | Install in the reverse order. |
