Remove/Install Telephone Antenna - AR82.62-P-0011S

Model 223

with code 380 (Car telephony package)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove outside mirror (A67/1, A67/2).	Model 223 with code 380 (Car telephony package) except code Z07 (B7 armoring on special protection version)	AR88.70-P-9000S
		Model 223 with code 380 (Car telephony package) with code Z07 (B7 armoring on special protection version)	AR88.70-P-9000SGA
2	Remove trim at outside mirror (A67/1, A67/2).		AR88.70-P-9040S

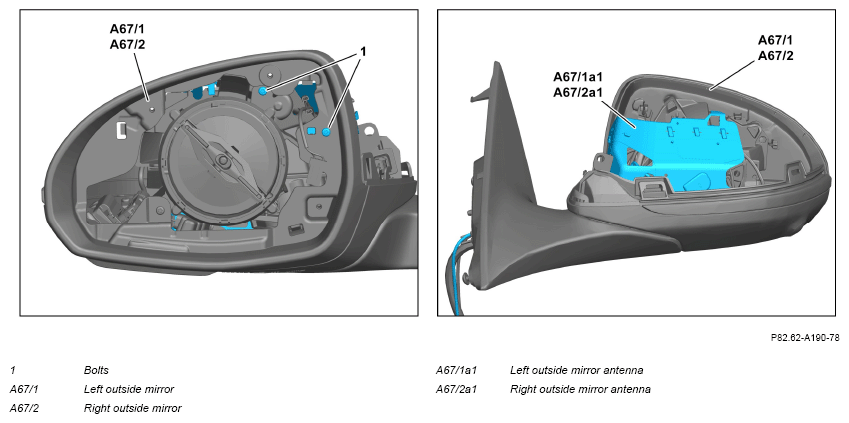

3	Remove bolts (1).
4	Unclip outside mirror antenna (A67/1a1, A67/2a).
5	Expose electrical line of outside mirror antenna (A67/1a1, A67/2a).	Ensure that routing of lines is correct.
6	Remove outside mirror antenna (A67/1a1, A67/2a).
7	Install in the reverse order.
