Remove/Install Speakers In Headliner - AR82.62-P-7876S
Model 223
with code 810 (Premium sound system)
Model 223
with code 811 (High-End sound system)
Shown with code 811 (High-end sound system)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Unclip cover trim (2), release and disconnect electrical connectors and remove cover trim (2). | Model 223 with code 811 (High-End sound system) When removing center roof lining mid-range speakers (H4/117, H4/118). |

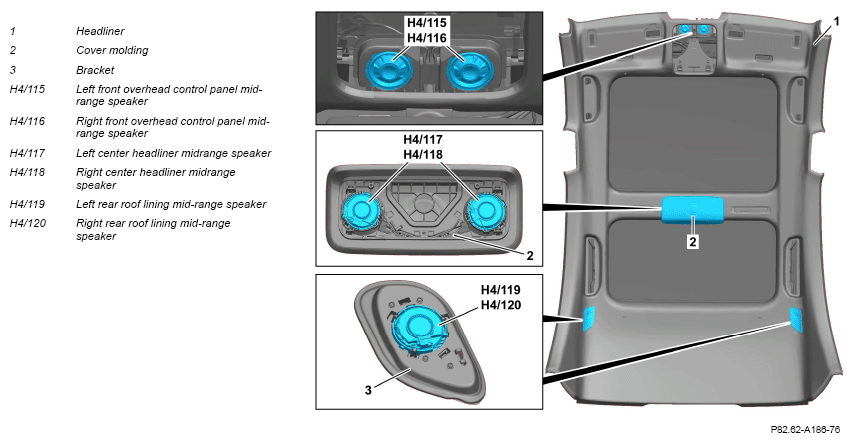

Fig 1 |
| 2 | Unclip center roof lining mid-range speaker (H4/117, H4/118) from cover trim (2) and remove. | Model 223 with code 811 (High-End sound system) |
|
| 3 | Remove roof lining (1) and place in vehicle. | Model 223 with code 810 (Premium sound system) Model 223 with code 811 (High-End sound system) When removing front overhead control panel mid-range speaker (H4/115, H4/116) or rear roof lining mid-range speaker (H4/119, H4/120). Model 223 with code 810 (Premium sound system) except code Z07 (B7 armoring on special protection version) Model 223 with code 811 (High-End sound system) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300S |
| 4 | Unclip front overhead control panel mid-range speaker (H4/115, H4/116) from roof lining (1) and remove. | ||
| 5 | Unclip rear roof lining mid-range speaker (H4/119, H4/120) from holder (3) and remove. | Model 223 with code 811 (High-End sound system) |
|
| 6 | Install in the reverse order. |
