Remove/Install Speaker In Rear Shelf - AR82.62-P-7836S
Model 223
with code 810 (Premium sound system)
Model 223
with code 811 (High-End sound system)
Shown with code 811 (High-end sound system)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

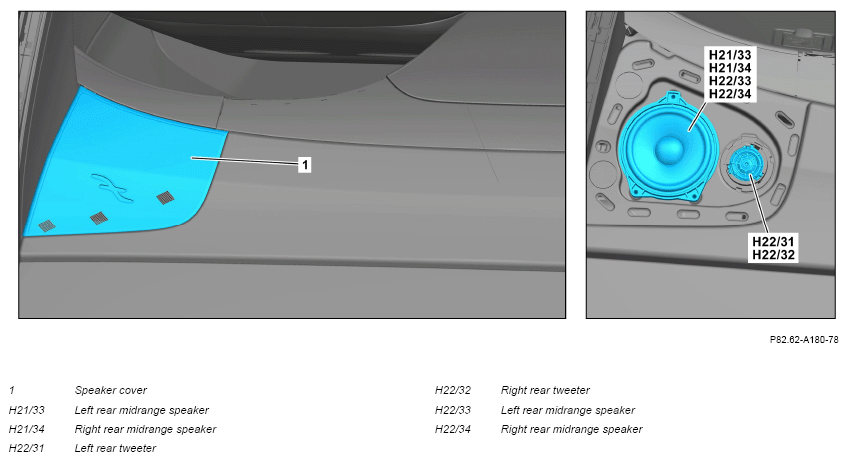

| 1 | Unclip corresponding speaker cover (1). | Fig 1 | |
| 2 | Unclip and remove rear mid-range speaker (H21/33, H21/34, H22/33, H22/34). | ||
| 3 | Disconnect electrical connector from rear mid-range speaker (H21/33, H21/34, H22/33, H22/34). | ||
| 4 | Unclip rear tweeter (H22/31, H22/32) and remove. | Model 223 with code 811 (High-End sound system) |
|
| 5 | Disconnect electrical connector at rear tweeter (H22/31, H22/32). | Model 223 with code 811 (High-End sound system) |
|
| 6 | Install in the reverse order. |
