Remove/Install Speaker In Head Restraint Of Front Seat - AR82.62-P-0026S
Model 223
with code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

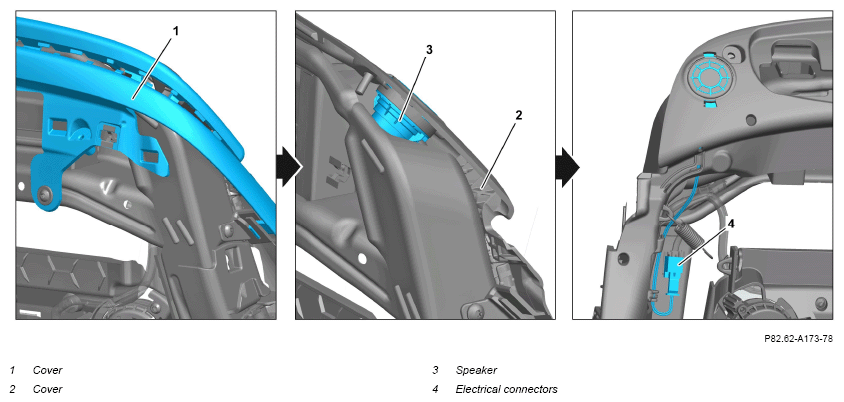

| 1 | Release front seat backrest padding until the respective speaker (3) is accessible. | AR91.10-P-0003S | |
| 2 | Remove cover (1). | ||
| 3 | Detach cover (2) from seat backrest frame. | ||
| 4 | Remove and disconnect respective electrical connector (4). | ||
| 5 | Expose electrical wiring harness of electrical connector (4). | ||
| 6 | Remove respective speaker (3). | ||
| 7 | Install in the reverse order. |
